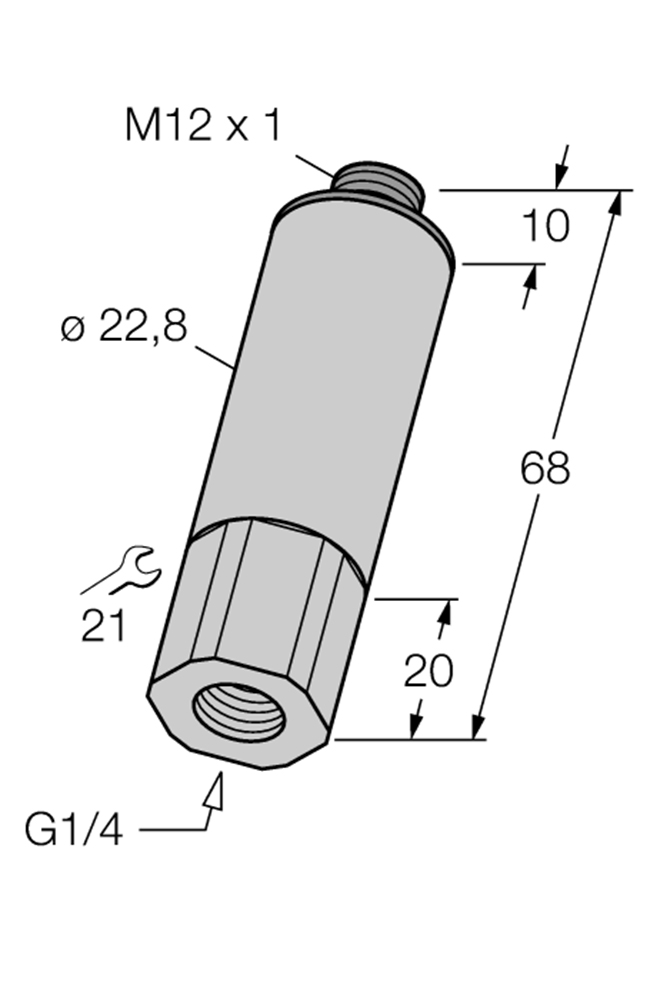

TURCK PT1 Series Pressure Transmitter
Pressure transmitter for use in pneumatic applications. Eurofast M12 electrical connection, ranges up to 400 bar (5800 psig).
Overview
Features
- Design: ceramic measuring cell
- Pressure range: up to 400 bar (0 to 5800 psig) (depending on variant)
- -30 to 0 in HG and 0 to 3 absolute ranges available
- Accuracy: ± 0.3% full scale
- Operating voltage:
- LI3: 8 to 33 VDC
- LU2: 11.4 to 33 VDC
- Response time: < 2ms
- Short Circuit / Reverse Polarity Protection
- Medium temperature: −40 to 125°C
- Materials:
- Housing:
- 303 stainless steel
- Wetted: 303 stainless steel, FPM, PPS, AL₂0₃ ceramic
- Housing:
- Process connections: NPT, G (BSPP)
- Protection rating: IP67
Description
The TURCK PT1 Series Pressure Transmitter is designed as a general purpose solution for pneumatic applications, with ceramic measuring cell. The wide tolerable medium temperature, durable stainless steel housing, and versatile measuring ranges available from vacuum to 400 bar (5800 psig), make this a flexible solution across various industries. The next generation of this product are the PT1000 and PT2000 Series Transmitters.
