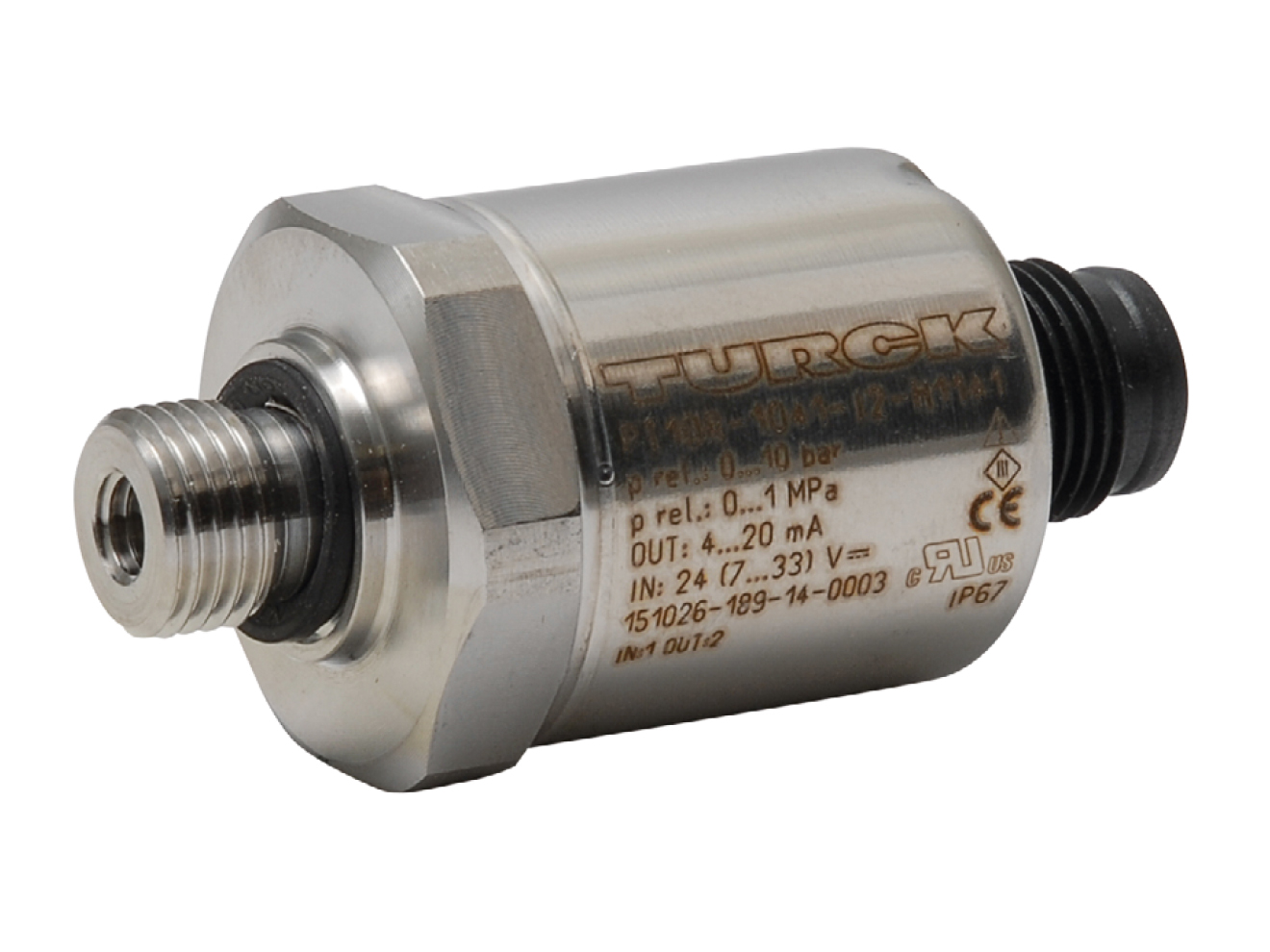

TURCK PT1000 Series Pressure Transmitter
Pressure transmitter with wide range of absolute, compound, and relative measurements up to 60 bar.
Overview
Features
- Design: ceramic measuring cell
- Pressure range: compound, absolute, relative, up to 60 bar
- Accuracy: ± 0.3% full scale
- Operating voltage:
- I2 / U3: 7 to 33 VDC
- U1: 12 to 33 VDC
- U2: 8 to 33 VDC
- U6: 5 VDC regulated
- Response time: < 2 ms
- Short Circuit / Reverse Polarity Protection
- Medium temperature: −40 to 125°C
- Materials:
- Housing: 316 stainless steel housing with Polyarylamide 50% GF
- Gel filled housing
- Wetted: 316 stainless steel, FPM, AL203 ceramic
- Housing: 316 stainless steel housing with Polyarylamide 50% GF
- Process connections: NPT, G (BSPP), and SAE-ORB
- Protection rating: IP67
Description
The TURCK PT1000 Series Pressure Transmitter provides accurate and consistent measurement performance at OEM price points. This transmitter line is designed around a ceramic measuring cell, ideally suited to various general purpose applications. The compact stainless steel housing, integral M12 4-pin connector, wide tolerable temperature span of mediums, and extensive measuring ranges available ensure a versatile solution to system needs. Additional ranges available upon request.
*Select configurations include customized feature codes (e.g., /S****). To determine if these special options may be the best solution for your application, reference the datasheet found on the specific part number's landing page, under the Documents tab. Contact a TMMI engineer if further clarification is needed.
