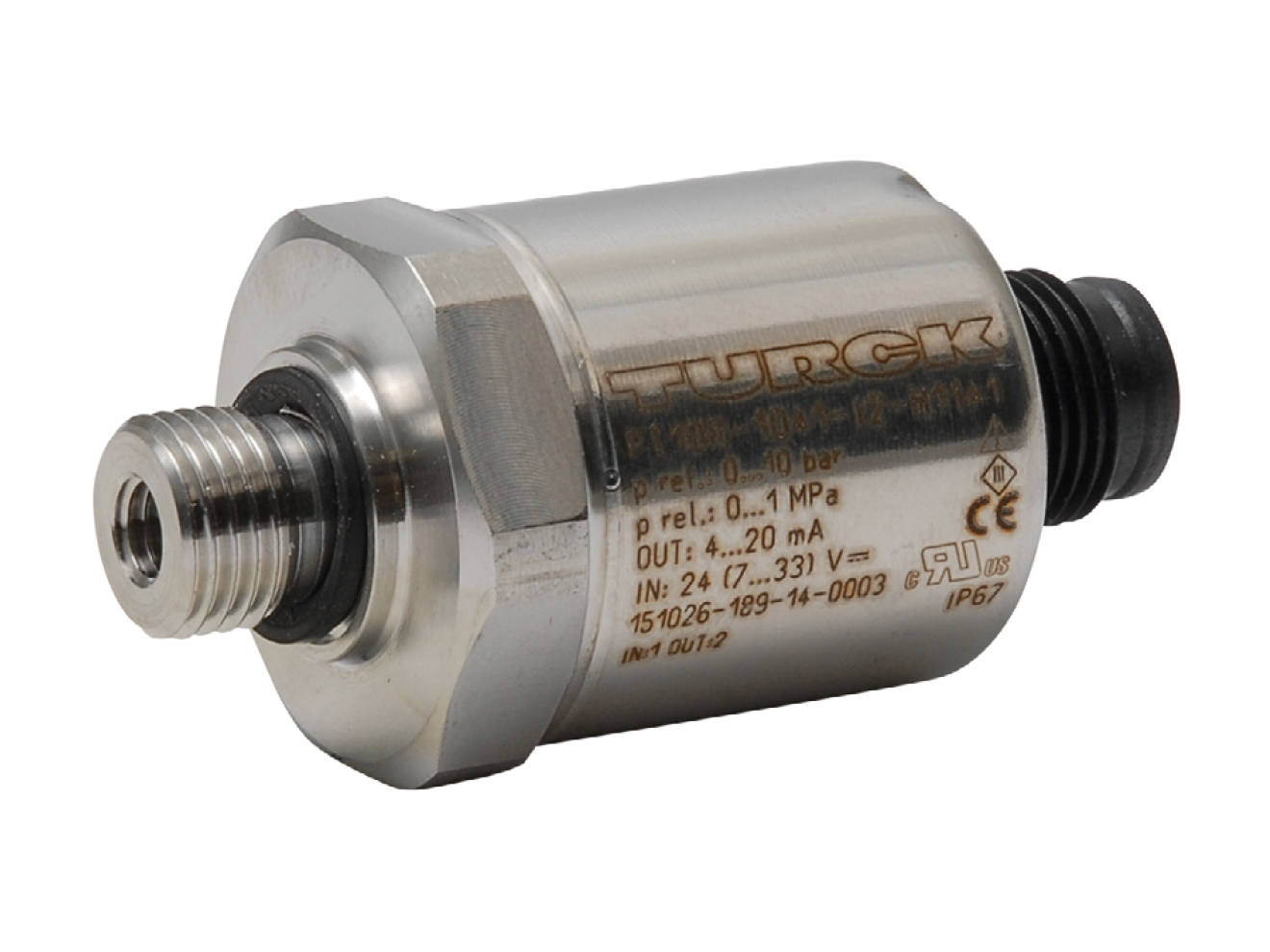

TURCK PT2000 Series Pressure Transmitter

Stainless steel pressure transmitter with wide range of compound, and relative measurement ranges up to 1000 bar (14500 psi).

Starting at $184.50
This model has 174 variants.
Manufactured
Availability
  • Call for availability
Product Manual Product Specs (2 Files)

Features

  • Design: stainless steel measuring cell
  • Pressure range: compound, relative, up to 1000 bar
  • Accuracy: ± 0.3% full scale
  • Operating voltage:
    • I2 / U3: 7 to 33 VDC
    • IX: 10 to 30 VDC
    • U1: 12 to 33 VDC
    • U2: 8 to 33 VDC
    • U6: 5 VDC regulated
  • Response time: < 2 ms
  • Short Circuit / Reverse Polarity Protection
  • Medium temperature: −40 to 135°C
  • Materials:
    • Housing: 316 stainless steel housing with Polyarylamide 50% GF
      • Gel filled housing
    • Wetted: 316 stainless steel (≤ 60 bar 430 stainless steel)
  • Process connections: NPT, G (BSPP), and SAE-ORB
  • IO-link available with select variants
  • Protection rating: IP67
  • ATEX approval (IX variants only): II 1/2 GD Ex ia IIC T4 Ga/Gb
  • Ex ia IIIC T125 °C Da/Db

The TURCK PT2000 Series Pressure Transmitter provides accurate and consistent measurement performance at OEM price points. This transmitter line is designed around a stainless steel measuring cell, with gel filled housing to prevent liquid ingress and internal condensation. The compact stainless steel housing, integral M12 4-pin connector, wide tolerable temperature span of mediums, and extensive measuring ranges available ensure a versatile solution to system needs. Additional ranges are available upon request.

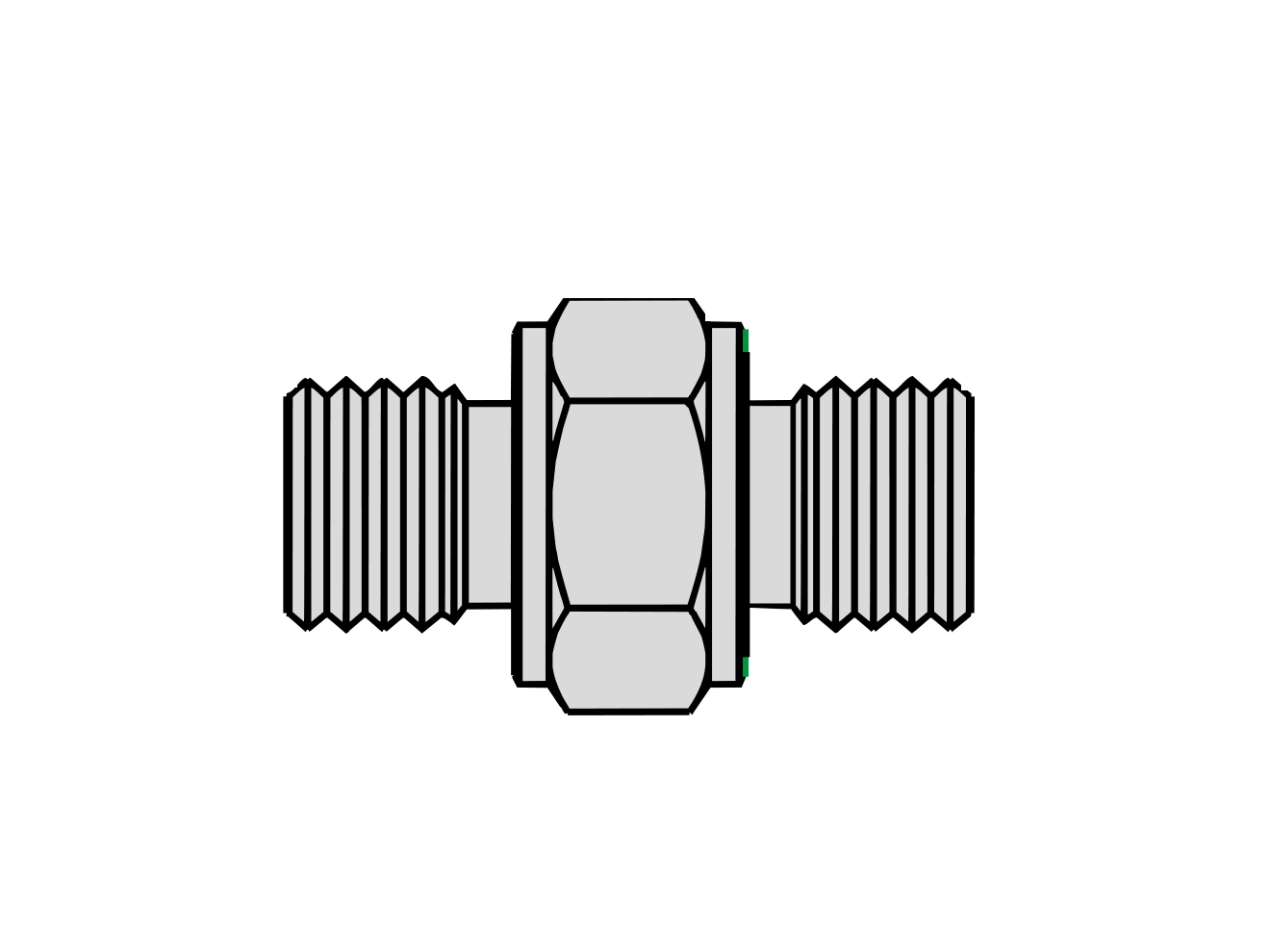

TURCK PCV Series Process Connection Adapter
TURCK PCV Series Process Connection Adapter

Threaded connection adapters for use with TURCK pressure sensors.

Starting at $22.70

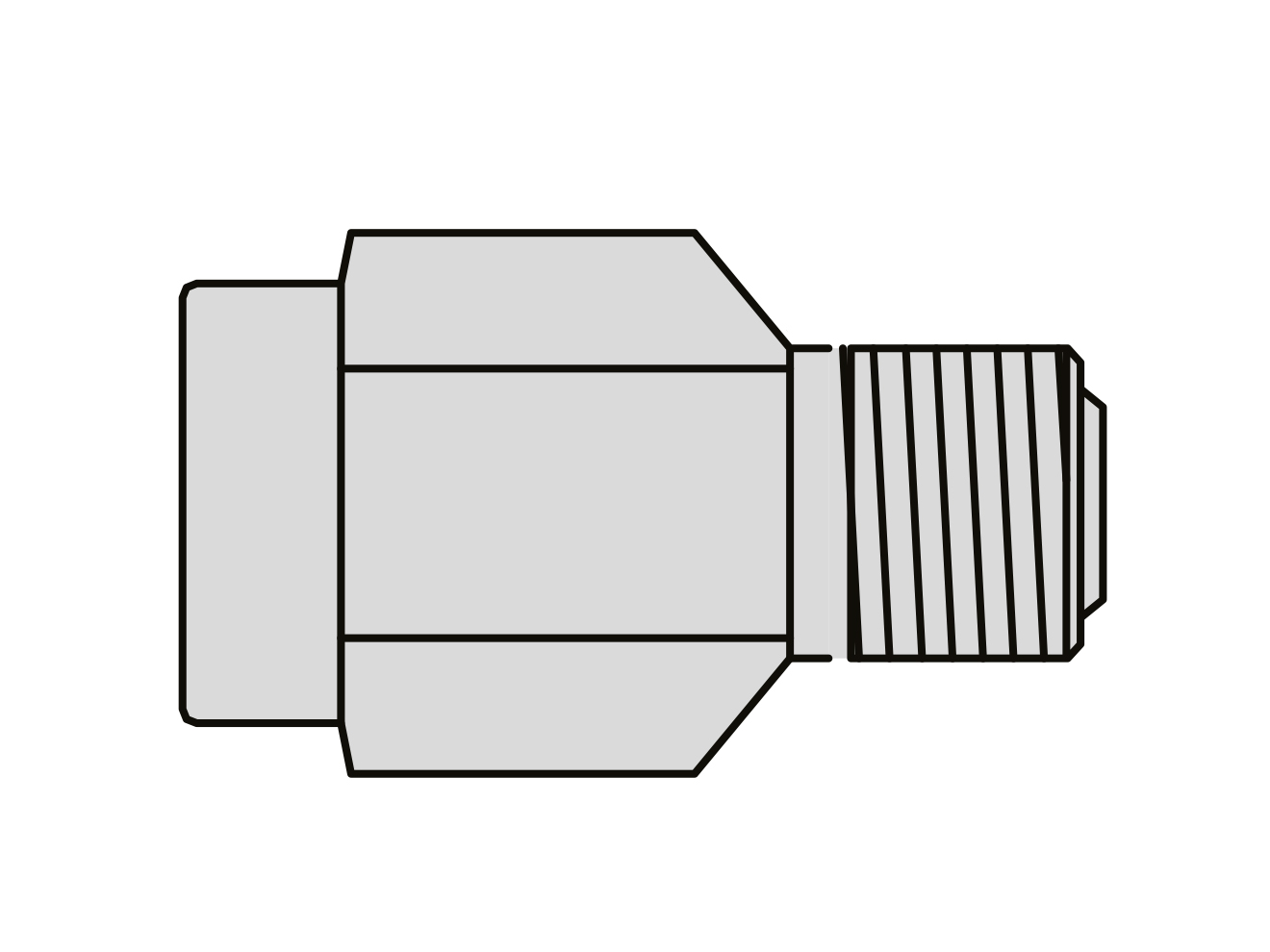

TURCK PSC Series Pressure Snubber
TURCK PSC Series Pressure Snubber

Snubber for use with TURCK pressure sensors. NPT1/4 and G1/4 threaded connections.

Starting at $51.00
