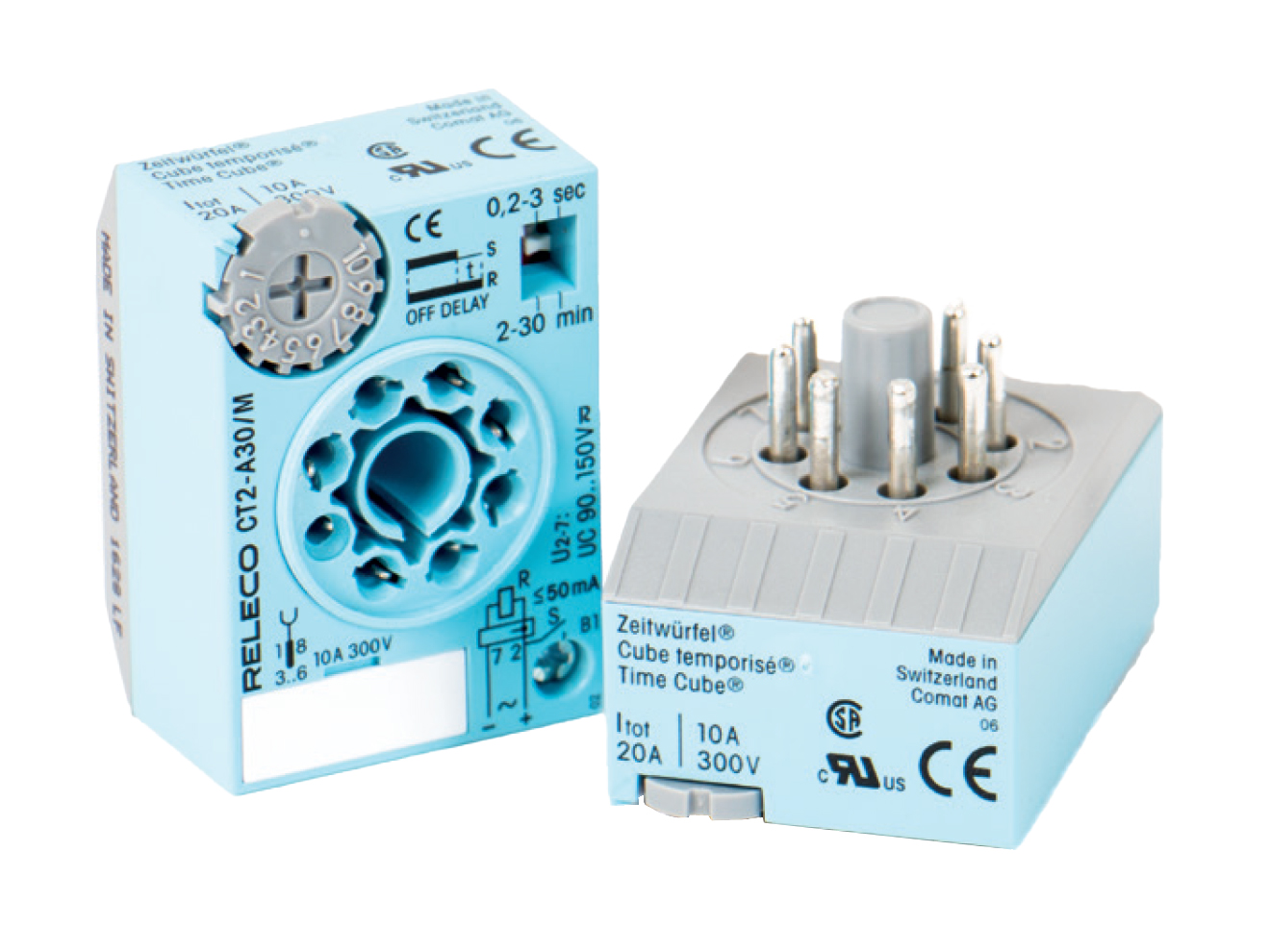

TURCK ComatReleco CT Series Time Cube

Single function, multivoltage 8- and 11-pin time cube. Voltage and trigger input controlled types available, with 0.2s to 30 m time range.

Starting at $95.20
This model has 24 variants.
Manufactured
Availability
  • Call for availability
Product Specs (2 Files)

Features

  • Design principle: 8 or 11-pin
  • Operating voltage controlled types:
    • On delay
    • Blinker
  • Trigger input controlled types:
    • Off delay
    • Pulse shaping, one shot
  • Time range: 0.2 s to 30 m
    • 4 partial time ranges (DIP switch): 3 s, 30 s, 3 m, 30 m
  • Repetition accuracy: ± 0.5 % or ± 20 ms
  • Reset time: ≤ 200 ms
  • Housing material: Lexan
  • Operating voltage:
    • S: 9.5 to 18 VDC
    • L: 20 to 65 VUC
    • M: 90 to 150 VUC
    • U: 180 to 265 VUC
    • H: 90 to 265 VUC
  • Operating temperature: -40 to 70°C / -25 to 60°C (no ice)
  • Protection rating: IP40
  • Socket type:
    • S2-B
    • S2-PO
    • S3-M
  • CE, RoHS compliant

The TURCK ComatReleco CT Series Time Cube offers 8- and 11-pin single function, multivoltage time cubes with a 0.2 s to 30 min range. Variants feature delay, blinker, pulse shaping (one shot), or off delay function. Units comply with the latest environmental regulations including RohS.
