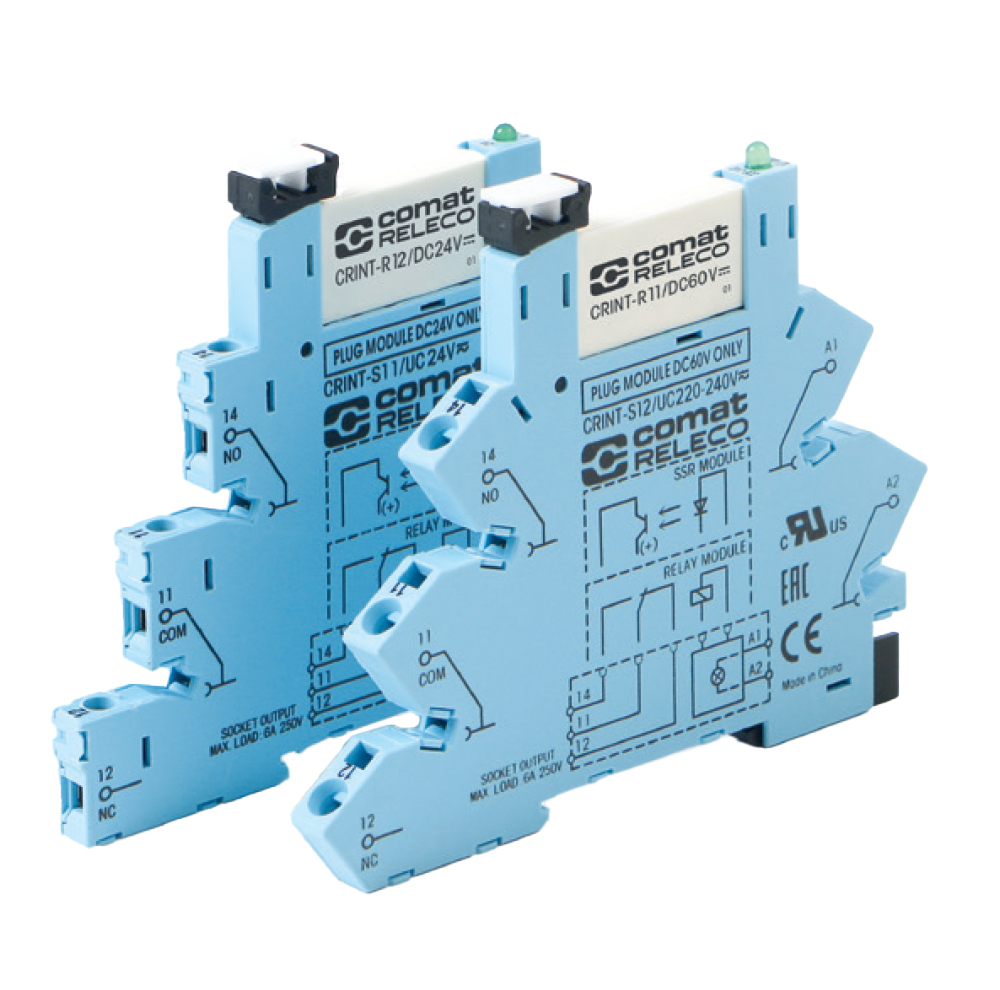

TURCK ComatReleco CRINT Series Relay

1-pole Faston pluggable relay with changeover or normally open contacts, with interface and solid state variants. Contact rating up to 6 A / 250 V.

Starting at $8.40
This model has 4 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Design principle: 1-pole, changeover contact / NO contact, Faston plug-in
    • Combined socket and relay solution
  • Maximum contact load:
    • AC-1: 6 A / 250 V
    • DC-1: 6 A / 30 V
  • Contact material:
    • AgSnO2
    • AgSnO2 + 5μ Au
  • Operating temperature: -40 to 70ºC / -40 to 85°C (no ice)
  • Nominal voltage: 24 V up to 60 V (DC)
  • CE, RoHS compliant
  • Protection rating: IP20

The TURCK ComatReleco CRINT Series Relay offers pluggable interface or solid state variants with changeover or N.O. contacts. Slim designs with Silver Tin Oxide (AgSnO2) contact material. Gold (Au) plating available for applications with harsh atmospheres. Relays with gold contacts are approved for relatively high currents, with rating available up to 6 A with 250 V (AC-1). All ComatReleco relays feature the CE mark to indicate that CE standards may also be applied to the relays. The units comply with the latest environmental regulations including RohS.

TURCK ComatReleco CRINT Series Socket Base
TURCK ComatReleco CRINT Series Socket Base

Socket base for use with CRINT Series interface and solid state relays.

Starting at $13.00
TURCK ComatReleco CRINT Series Bridge Bar
TURCK ComatReleco CRINT Series Bridge Bar

Bridge bar for use with CRINT Series interface and solid state relays.

Starting at $25.10
