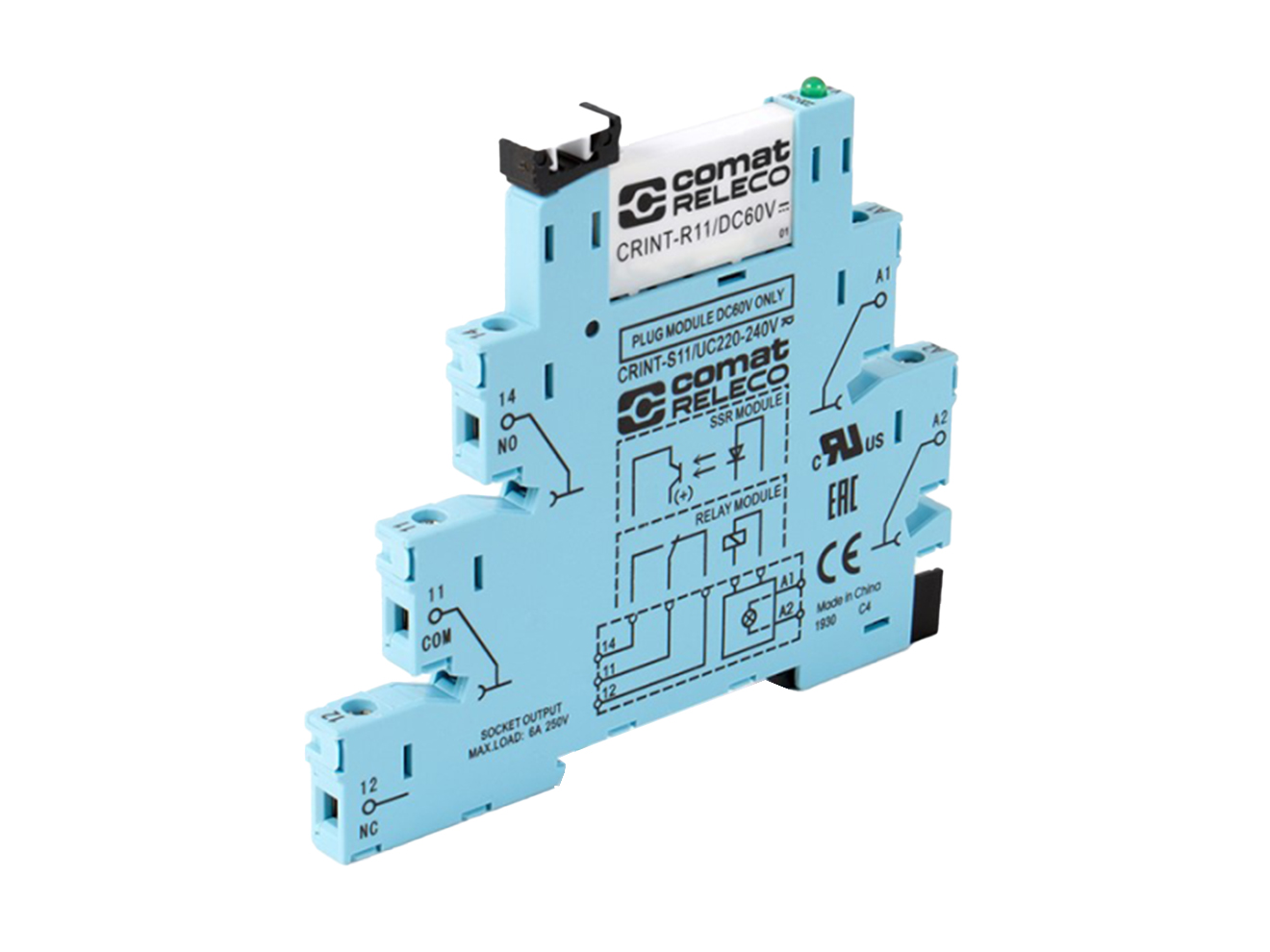

TURCK ComatReleco CRINT Series Relay and Socket Module
Slim style relay and socket Faston pluggable solution with changeover or normally open contacts, with interface and solid state variants. Contact rating up to 6 A / 250 V.
Overview
Features
- Design principle: 1-pole, changeover contact / NO contact, Faston plug-in
- Combined socket and relay solution
- Maximum contact load:
- AC-1: 6 A / 250 V
- DC-1: 6 A / 30 V
- Contact material:
- AgSnO2
- AgSnO2 + 3μ Au
- Operating temperature: -40 to 70ºC / -40 to 85°C (no ice)
- Nominal voltage: 12 V up to 125 V (DC and AC/DC)
- CE, RoHS compliant
- Protection rating: IP20
Description
The TURCK ComatReleco CRINT Series Relay and Socket Module offers pluggable interface or solid state relay-and-socket packaged systems, with changeover or N.O. contacts. Slim designs feature Silver Tin Oxide (AgSnO2) contact material, with Gold (Au) plating available for applications with harsh atmospheres. Relays with gold contacts are approved for relatively high currents, with rating available up to 6 A with 250 V (AC-1). Colour coding as a function of the coil voltage further streamlines manual operation. All ComatReleco relays feature the CE mark to indicate that CE standards may also be applied to the relays. The units comply with the latest environmental regulations including RohS.
