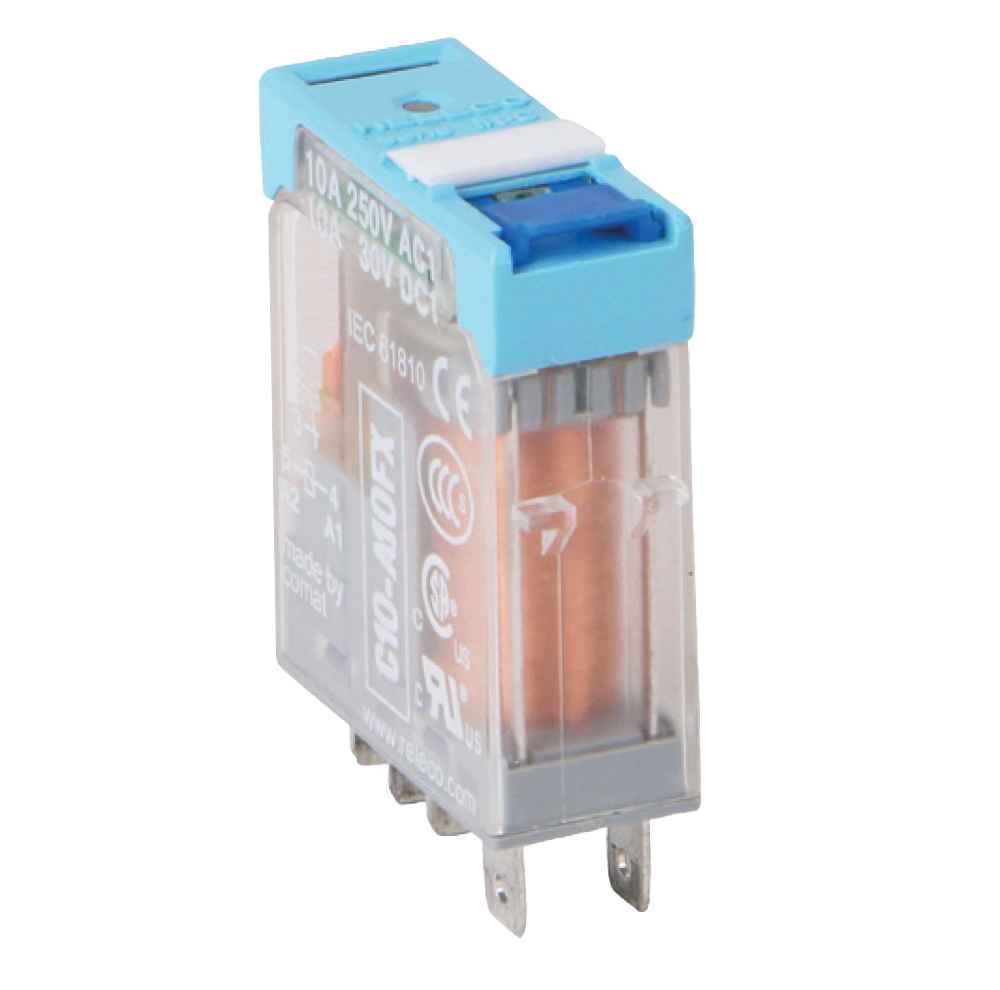

TURCK ComatReleco C10 Series Interface Relay

1-pole Faston pluggable interface relay. 5-pin socket type with changeover or normally open contacts. Contact rating up to 10 A at 250 V.

Starting at $16.70
This model has 24 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Design principle: 2-pole, changeover contact / N.O. contact, plug-in
  • Socket type: S10, S10-P
  • Maximum contact load:
    • A1x:
      • AC-1: 10 A / 250 V
      • DC-1: 0.5 A / 110 V
    • G1x:
      • AC-1: 10 A/ 250 V
      • DC-1: 0.8 A/ 110 V
    • T1x:
      • AC-1: 6 A/ 250 V
      • DC-1: 0.5 A/ 110 V
  • Material:
    • AgNi
    • AgNi + 0.2 µ Au
    • AgNi + 5 µ Au
    • AgSnO2
  • Pin count: 5
  • Operating temperature: -40 to 70ºC / -40 to 80°C (no ice)
  • Coil voltage: 5 V up to 240 V (AC/DC universal variants available)
  • CE, RoHS compliant

The TURCK ComatReleco C10 Series Interface Relay is a line of 1-pole, 5-pin socket-type pluggable relays, with changeover or N.O. contacts. Standard contact material for these relays is AgSnO2 Silver Tin Oxide and Silver Nickel (AgNi), with Gold (Au) plating available for applications with harsh atmospheres. Relays with gold contacts are approved for relatively high currents, with rating available up to 10 A with 250 V (DC-1). The meticulous design optimizes use for general purpose across industrial applications and installation engineering. Colour coding as a function of the coil voltage further streamlines manual operation. Additional options including freewheeling diodes, LED indicators, bridge rectifiers for AC/DC drives, resistor and capacitor, as well as polarity can be configured. All ComatReleco relays feature the CE mark to indicate that CE standards may also be applied to the relays. The units comply with the latest environmental regulations including RohS.
