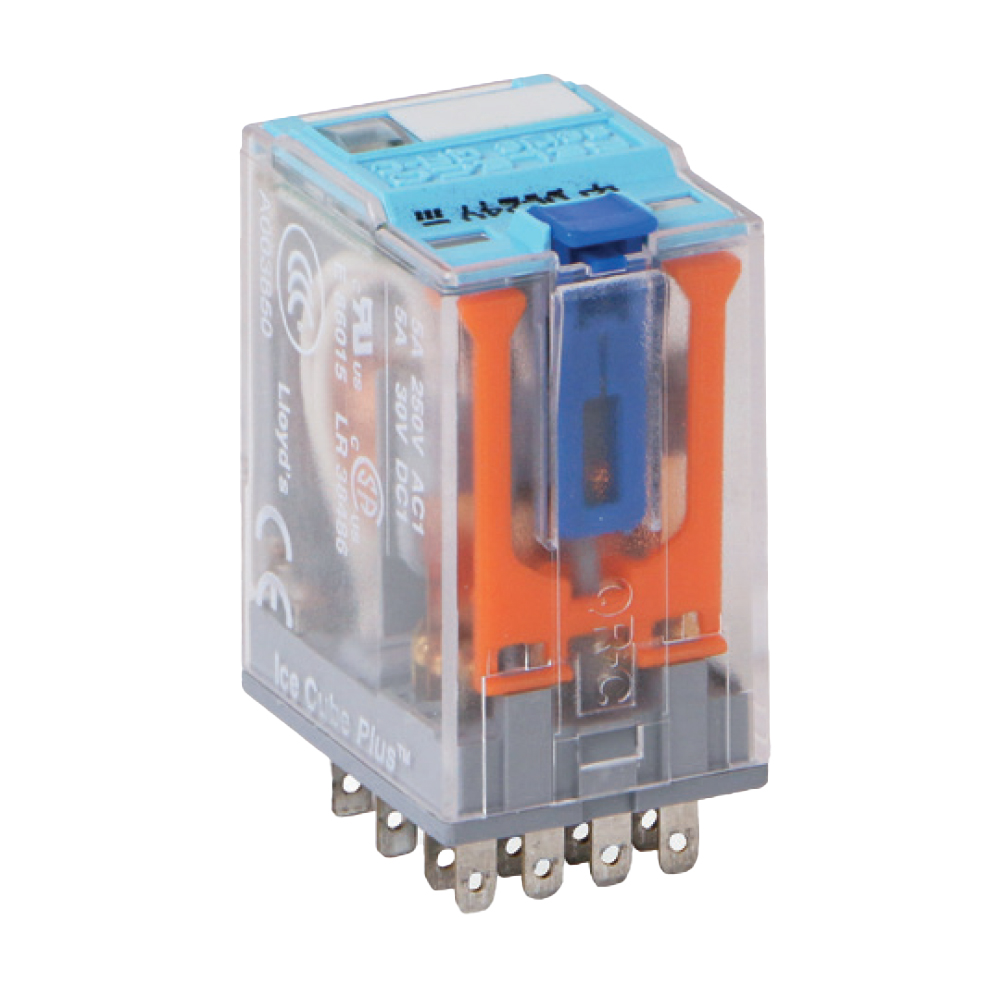

TURCK ComatReleco C9 Series Industrial Relay

2 and 4-pole Faston pluggable industrial relay. 14-pin socket type with changeover contacts, sensitive coil and retentive variants. Contact rating up to 5 A at 250 V.

Starting at $20.50
This model has 35 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Design principle: 2-pole, changeover contact, plug-in
  • Socket type: S9-M, S9-P
  • Maximum contact load:
    • A4x/E2x:
      • AC-1: 5 A / 250 V
      • DC-1: 5 A / 30 V
    • R2x:
      • AC-1: 5 A / 120 V
      • DC-1: 5 A / 30 V
  • Material:
    • AgNi + 0.2 µ Au
    • AgNi + 5 µ Au
  • Pin count: 14
  • Operating temperature: -40 to 60ºC / -40 to 80°C (no ice)
  • Coil voltage: 6 V up to 240 V (AC/DC universal variants available)
  • CE, RoHS compliant

The TURCK ComatReleco C9 Series Industrial Relay is a line of 2-pole, and 4-pole 14-pin (flat) socket-type pluggable relays, with changeover contacts. Standard contact material for these relays is Silver Nickel (AgNi), with Gold (Au) plating available for applications with harsh atmospheres. Relays with gold contacts are approved for currents up to 5 A with 250 V (DC-1). The meticulous design optimizes use across industrial applications and installation engineering, with miniature, sensitive coil (500 to 800 mW), and latching relay variants available. Colour coding as a function of the coil voltage further streamlines manual operation. Additional options including freewheeling diodes, LED indicators, bridge rectifiers for AC/DC drives, as well as polarity can be configured. All ComatReleco relays feature the CE mark to indicate that CE standards may also be applied to the relays. The units comply with the latest environmental regulations including RohS.
