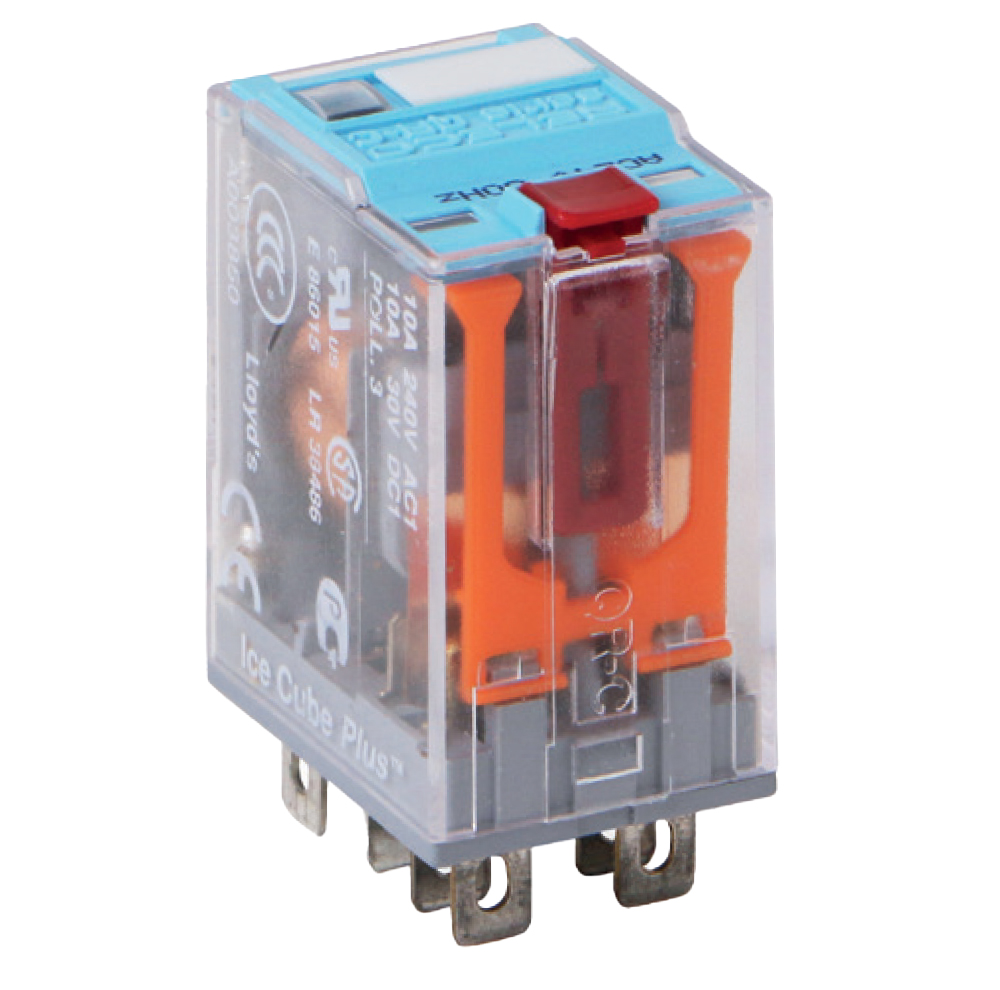

TURCK ComatReleco C7 Series Industrial Relay

1 to 3-pole pluggable industrial relay. 11-pin socket type with changeover or normally open contacts. Contact rating up to 10 A at 250 V.

Starting at $18.70
This model has 48 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Design principle: 1-pole, 2-pole, changeover or N.O. contacts, plug-in
    • Changeover twin contact available
  • Socket type: S7-C, S7-IO, S7-P
  • Maximum contact load:
    • A1x:
      • AC-1: 16 A / 250 V
      • DC-1: 0.5 A / 110 V
    • A2x:
      • AC-1: 10 A / 250 V
      • DC-1: 0.5 A / 110 V
    • T2x:
      • AC-1: 6 A / 250 V
      • DC-1: 6 A / 30 V
    • G2x:
      • AC-1: 10 A / 250 V
      • DC-1: 0.8 A / 110 V
    • X1x:
      • AC-1: 10 A / 250 V
      • DC-1: 6 A / 110 V
  • Material:
    • AgNi
    • AgNi + 5 µ Au
    • AgNi + 10 µ Au
  • Pin count: 8
  • Operating temperature: -40 to 60ºC / -40 to 80°C (no ice)
  • Coil voltage: 12 V up to 240 V
    • 24 AC/DC universal variant available
  • CE, RoHS compliant

The TURCK ComatReleco C7 Series Industrial Relay is a line of 1- and 2-pole, 8-pin socket-type pluggable relays, with changeover or N.O. contacts. Standard contact material for these relays is Silver Nickel (AgNi), with Gold (Au) plating available for applications with harsh atmospheres. Relays with gold contacts are approved for relatively high currents, with rating available up to 16 A with 250 V (DC-1, C7-A1x variant only). The meticulous design optimizes use across industrial applications and installation engineering, with miniature, general purpose, and DC loading switching varaints available. Colour coding as a function of the coil voltage further streamlines manual operation. Additional options including freewheeling diodes, LED indicators, bridge rectifiers for AC/DC drives, as well as polarity can be configured. All ComatReleco relays feature the CE mark to indicate that CE standards may also be applied to the relays. The units comply with the latest environmental regulations including RohS.
