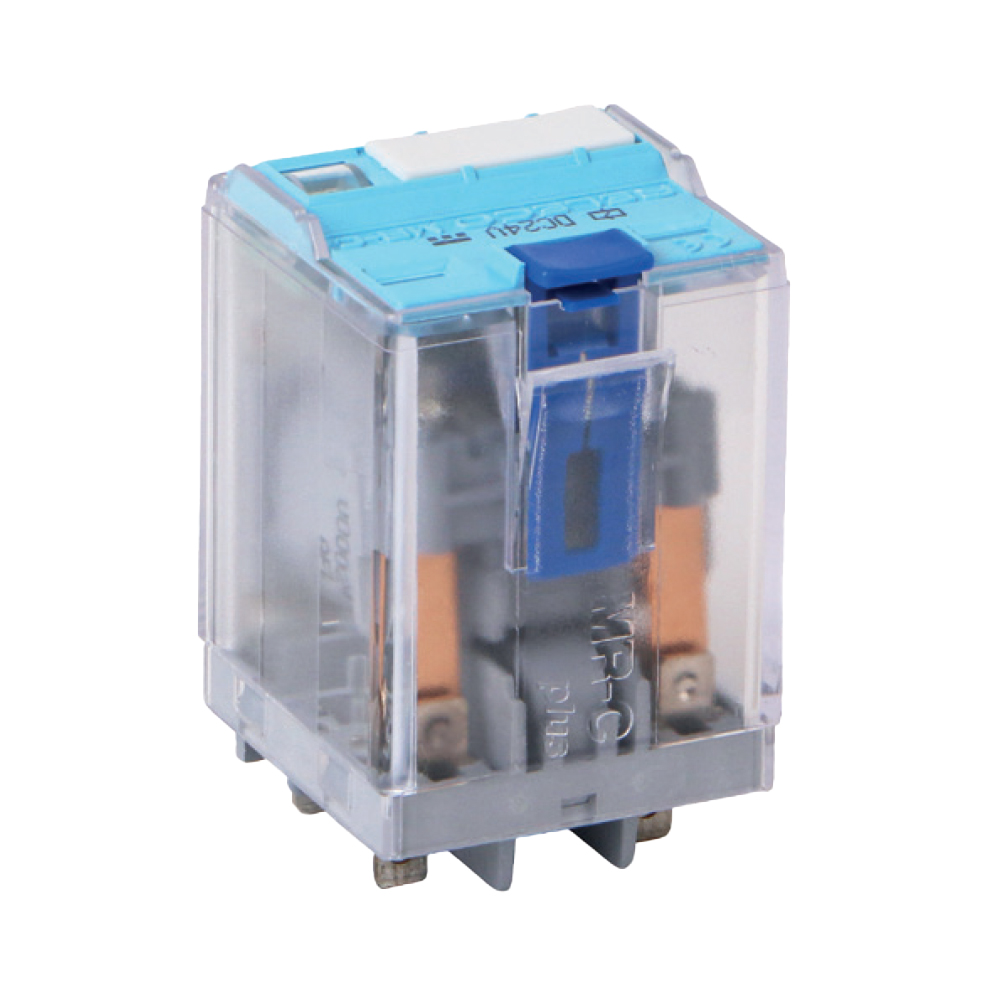

TURCK ComatReleco C5 Series Industrial Relay

1 to 3-pole Faston pluggable industrial relay. 11-pin square base socket type with changeover or normally open contacts. Contact rating up to 16 A / 4000 V.

Starting at $20.50
This model has 51 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Design principle: 1 to 3-pole, changeover contact or N.O. contact, plug-in
  • Socket type: S5-M, S5-P
  • Maximum contact load:
    • A3x:
      • AC-1: 16 A / 400 V
      • DC-1: 0.5 A / 110 V
    • G3x:
      • AC-1: 16 A / 400 V
      • DC-1: 1.2 A / 110 V
    • X1x:
      • AC-1: 16 A / 400 V
      • DC-1: 7 A / 110 V
    • M1x:
      • AC-1: 16 A / 400 V
      • DC-1: 10 A / 220 V
    • M2x:
      • AC-1: 16 A / 400 V
      • DC-1: 10 A / 220 V
  • Material:
    • AgNi
    • AgSnO2
  • Pin count: 11
  • Operating temperature: -40 to 60ºC / -40 to 80°C (no ice)
  • Coil voltage: 12 V up to 240 V
    • 24 AC/DC universal variant available
  • CE, RoHS compliant

The TURCK ComatReleco C5 Series Industrial Relay is a line of 1-, 2-pole, and 3-pole 11-pin socket-type pluggable relays, with changeover or N.O. contacts. Standard contact material for these relays is Silver Tin Oxide (AgSnO2), or Silver Nickel (AgNi). Silver Nickel variants are available with Gold (Au) plating for applications with harsh atmospheres. Relays with gold contacts are approved for relatively high currents, with rating available up to 16 A with 400 V (AC-1). The meticulous design optimizes use across industrial applications and installation engineering, with power relay, DC load switching (with double make and magnetic blow out), and latching relay variants available. Colour coding as a function of the coil voltage further streamlines manual operation. Additional options including freewheeling diodes, LED indicators, as well as polarity can be configured. All ComatReleco relays feature the CE mark to indicate that CE standards may also be applied to the relays. The units comply with the latest environmental regulations including RohS.
