TURCK Q-track Q25L IO-Link Series Linear Position Sensor
Rectangular linear position sensor with 100 to 2000 mm span. 32-bit IO-Link telegram output, with wide operating temperature range, IP66/67 rating.
Overview
Features
- Measuring span: 100 to 2000 mm
- Resolution: 16 bit
- Repeat accuracy: ≤ 0.02% of full scale
- Ambient temperature: -25 to 70°C
- Operating voltage: 15 to 30 VDC
- Short-circuit protection
- Wire breakage / reverse polarity protection
- Output: IO-Link, 32-bit telegram
- Sampling rate: 5000 Hz
- Housing: rectangular, 35 x 25 mm, L = measuring range + 58 mm
- Material:
- Housing: aluminum
- Material active face: plastic, PA6-GF30
- Connection: connector, M12 x 1
- 3x LEDs (green/yellow status indication)
- Short blind zones
- Vibration resistance: 55 Hz (1 mm)
- Shock resistance: 30 g (11 ms)
- Protection rating (IEC 60529/EN 60529): IP67/IP66
Description
The TURCK Q-track Q25L IO-Link Series Linear Position Sensor offers a 100 to 2000 mm measuring span and M12 Eurofast connection. The watertight, IP66/IP67 design offers reliable operation, with a -25 to 70°C operating range. IO-Link output features 32-bit telegram data communication.

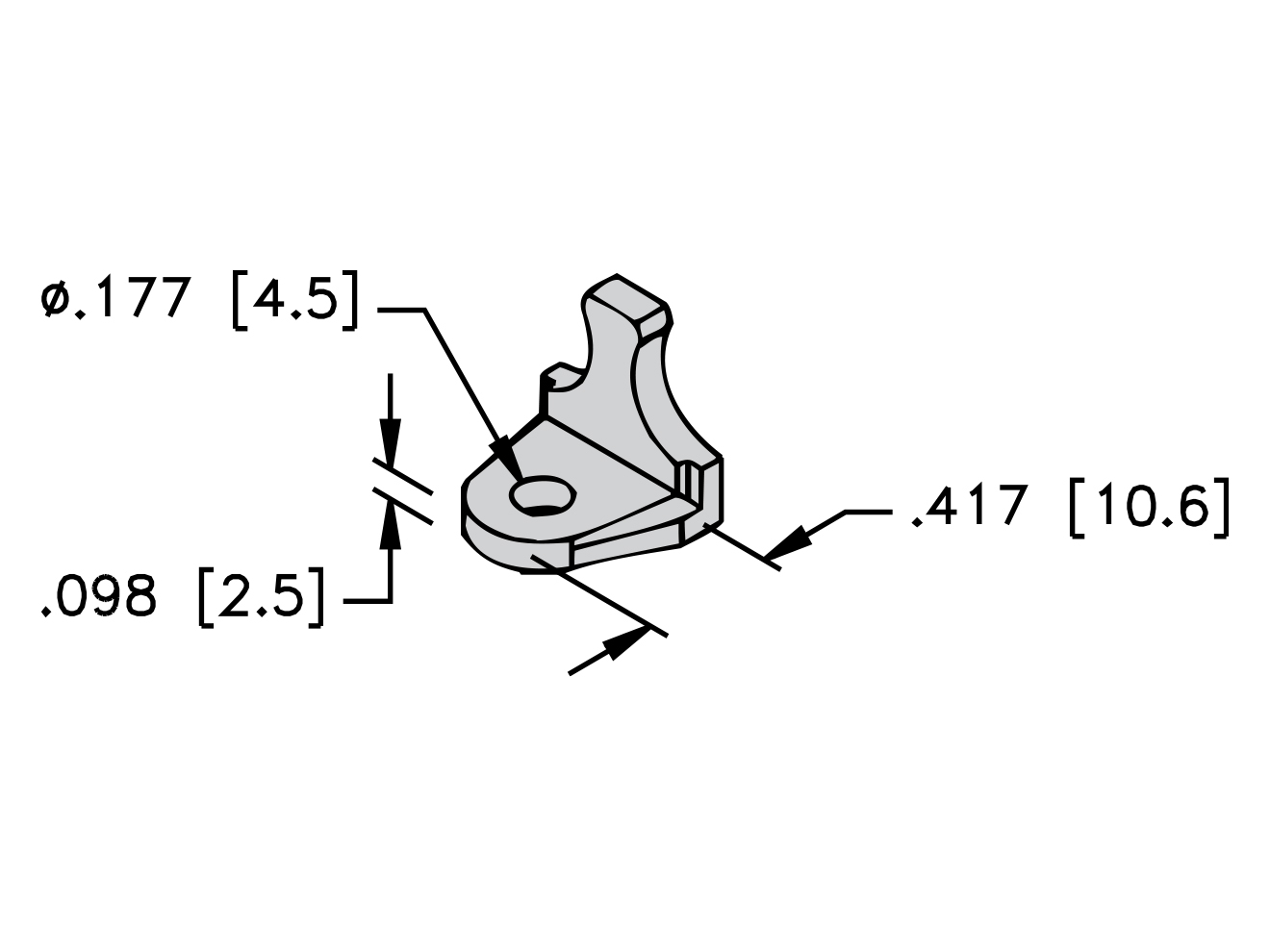

Accessories
