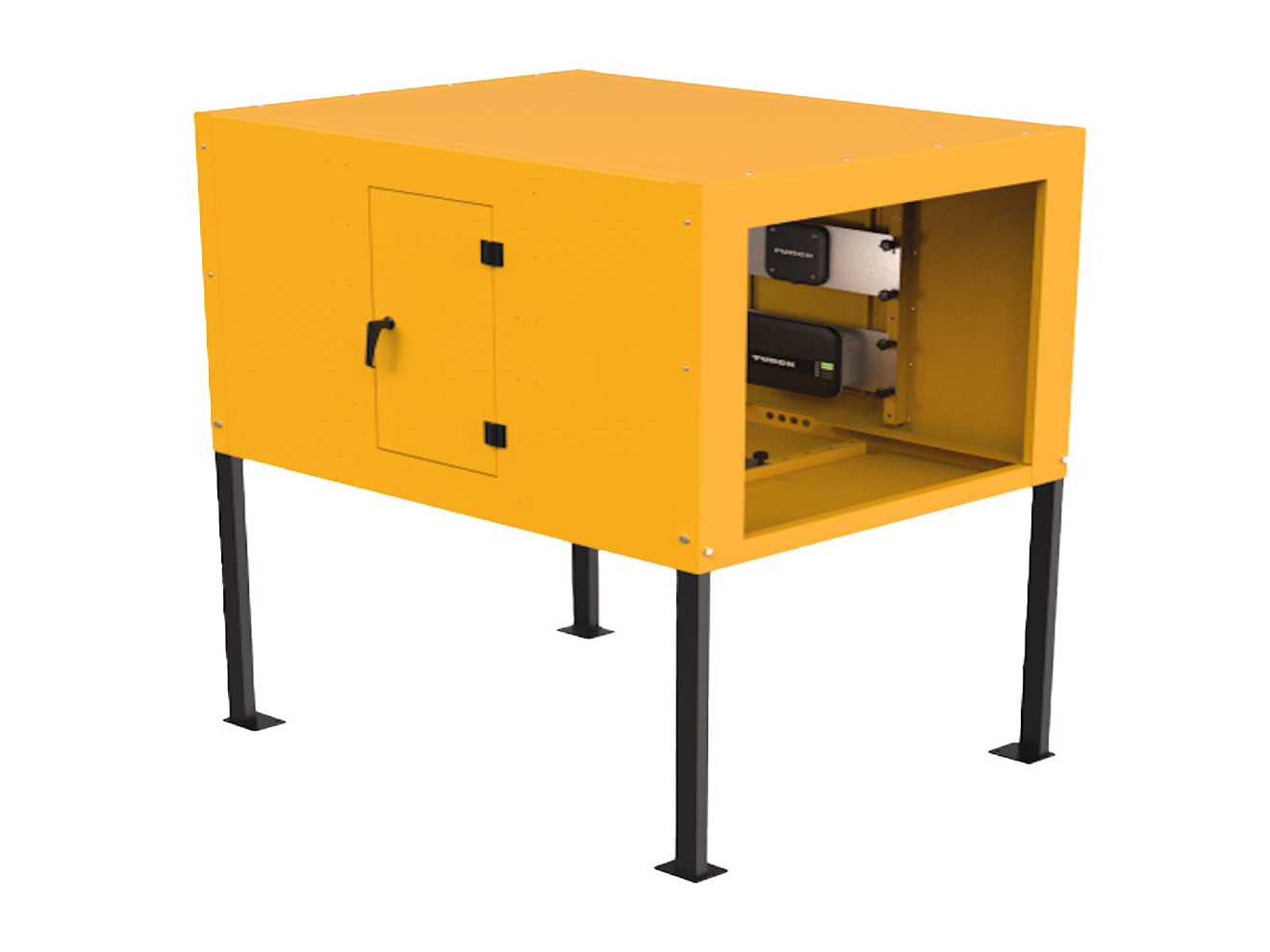

TURCK 200015835 / UHF-SYS-TUNNEL-FCC RFID Tunnel System

Ultra High Frequency RFID solution for bulk object detection on conveyer belt systems.

$9,595.00
Part Numbers
  • UHF-SYS-TUNNEL-FCC
  • 200015835
Manufactured
Availability
  • Usually ships in 8-12 weeks
Product Manual Product Specs (2 Files)

Features

  • Operation principle: UHF RFID
  • Max. conveyor speed: < 1 m/s
  • Recommended distance between objects: > 1.3 m
  • Size of the tunnel opening: 720 × 660 mm
  • Operating voltage: 12 to 30 VDC
  • Pre-installed TVSnode software
  • REST API interface

What's in the Box

  • RFID tunnel:
  • - 2 side parts
  • - Base plate
  • - Cover plate
  • - Front cover
  • - Back
  • - 4 × feet
  • - 1 × TN-UHF-Q180L300…LNX UHF reader
  • - 4 × TN-UHF-ANT-Q150… UHF antennas
  • - 5 × aluminum mounting plates for readers and antennas
  • Installation material:
  • - 16 × M6 × 16 fillister head screws (ISO 7380-1)
  • - 24 × M8 × 24 fillister head screws (ISO 7380-1)
  • - 4 × M8 × 50 hexagon head screws (ISO 4014)
  • - 4 × M8 × 70 hexagon head screws (ISO 4014)
  • - 8 × M8 nuts (DIN 934 A4)
  • - 20 × knurled screws M6
  • Extension cables:
  • - RSSD-RJ45S-4422-5M Ethernet cable for connecting the reader
  • - RSC4T-5/TXL supply cable
  • - TN-UHF-CBL-HF240-RPTNC-2-SMA coaxial cable for connecting the antennas
  • - Voltage

The TURCK UHF-SYS-TUNNEL-FCC RFID Tunnel System offers Ultra High Frequency detection of objects on conveyor belt systems via TN-UHF Series reader and antennas integrated into 720 x 660 mm conveyer tunnel. The pre-installed TVSnode software enables ready commissioning and communication via integrated REST API interface.
