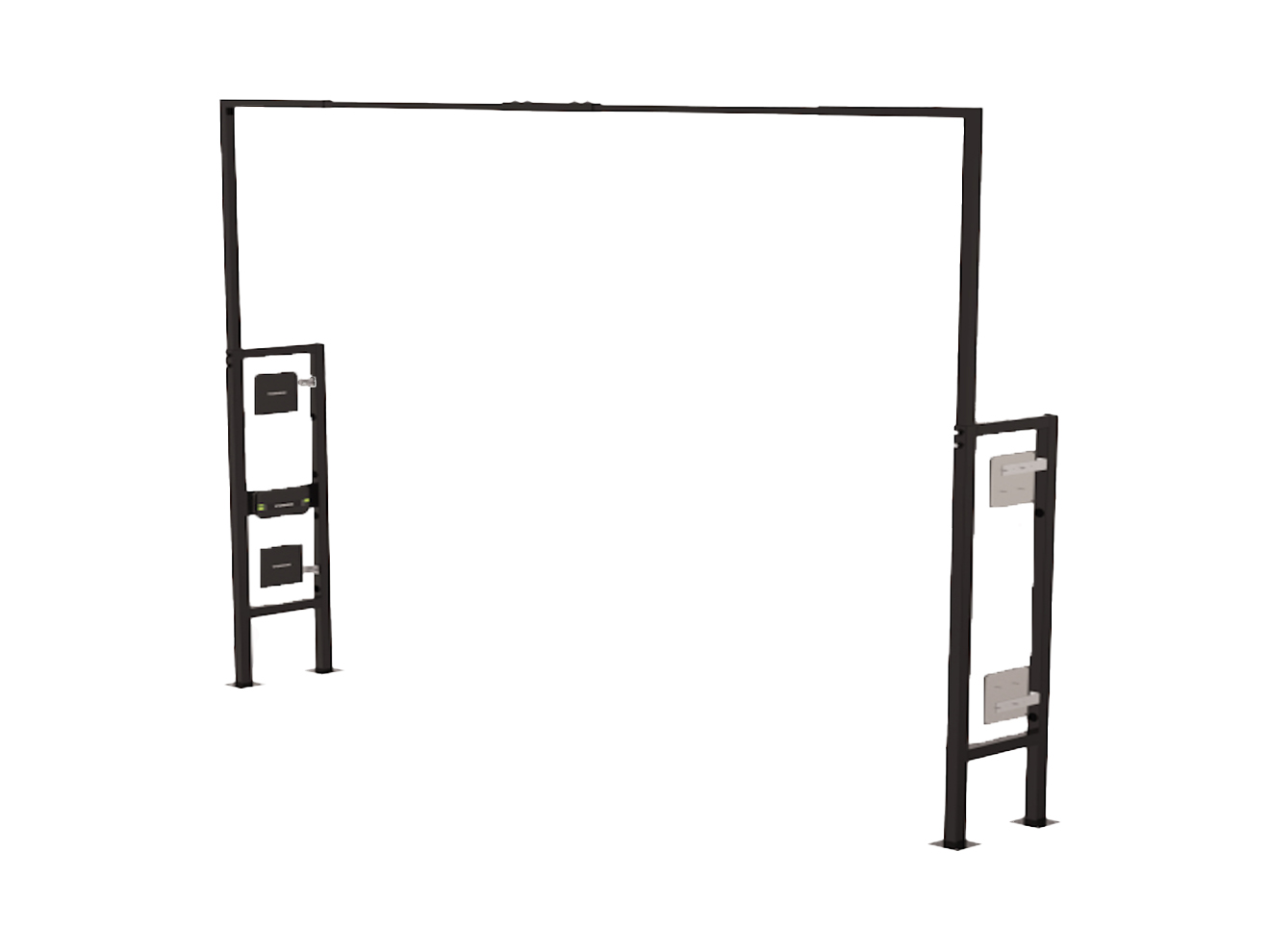

TURCK 200015826 / UHF-SYS-GATE-PASS-FCC RFID Gate System

Ultra High Frequency RFID gate for bulk object detection upon system loading.

$5,995.00
Part Numbers
  • UHF-SYS-GATE-PASS-FCC
  • 200015826
Manufactured
Availability
  • Usually ships in 8-12 weeks
Product Manual Product Specs (3 Files)

Features

  • Operation principle: UHF RFID
  • Pre-installed TVSnode software
  • REST API interface
  • Variable frame size
    • Width: 1700 to 4300 mm
    • Height: 2200 to 3600 mm
  • Operating voltage: 12 to 30 VDC
  • Protection rating: IP67

What's in the Box

  • RFID gate:
  • - 1 × TN-UHF-Q180L300…LNX UHF
  • reader
  • - 4 × TN-UHF-ANT-Q250… UHF antennas
  • - 100 to 240 V power supply
  • - 2 × steel mounting plates for reader and
  • power supply
  • - 4 × brackets for antennas
  • - Mounting hardware for antenna, reader
  • and power supply
  • Extension cables:
  • - 1x RSC 4.4T-1.5-RKM 40 reader power
  • supply cable
  • - 2x TN-UHF-CBL-HF240-RPTNC-2-SMA
  • and 2x TN-UHF-CBL-HF240-RPTNC-10-SMA antenna coaxial cables
  • Installation instructions

The TURCK UHF-SYS-GATE-PASS-FCC RFID Gate System offers Ultra High Frequency detection of bulk objects on loading of systems via integrated TN-UHF Series readers and antennas. The pre-installed TVSnode software enables ready commissioning and communication via the REST API interface. Adjustable frame sizes with widths from 1700 to 4300 mm, and heights from 2200 to 3600 mm.
