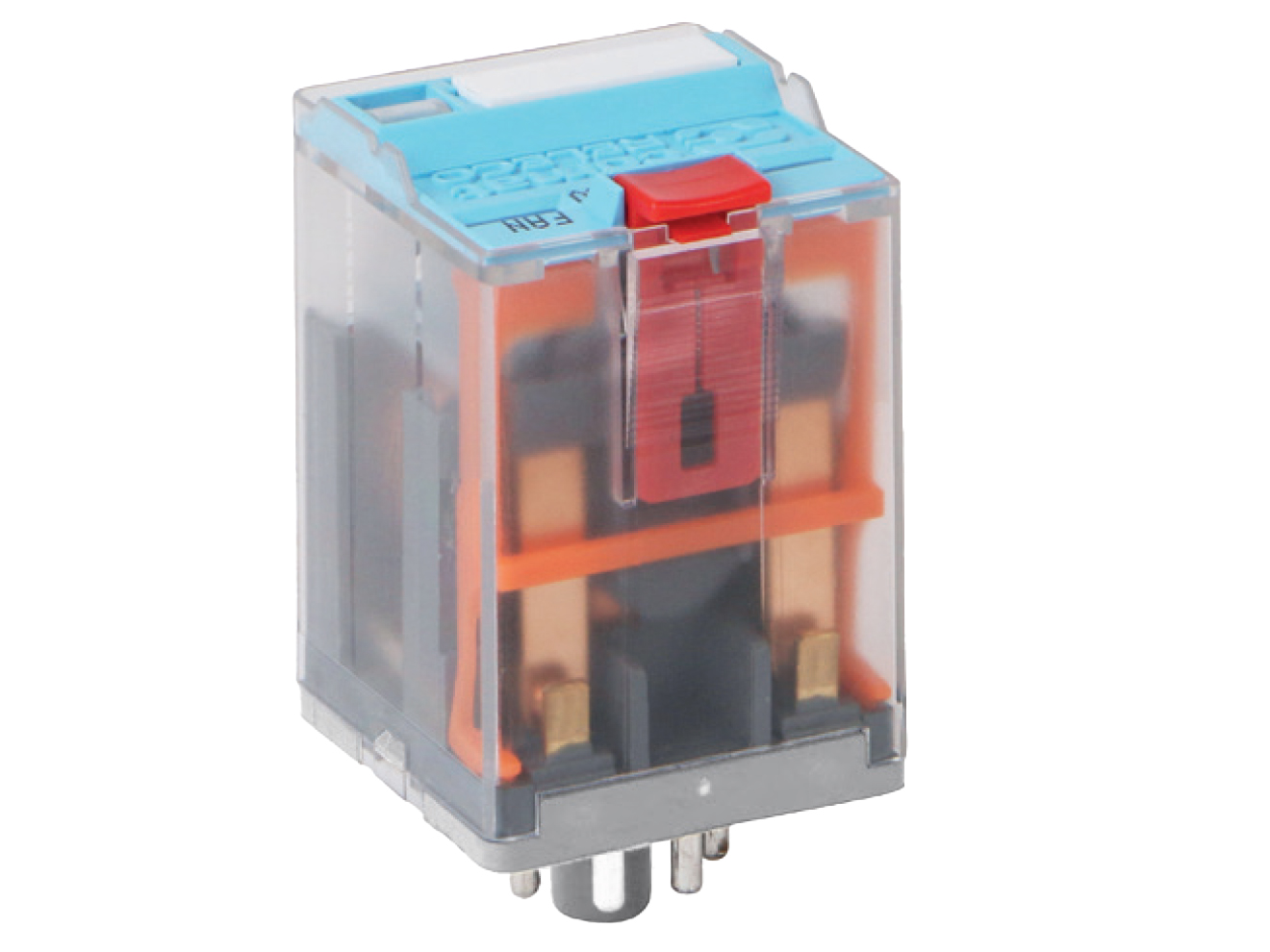

TURCK ComatReleco C2 Series Industrial Relay

General purpose 2-pole pluggable industrial relay. 8-pin socket type with changeover contacts. Contact rating up to 10 A at 250 V.

Starting at $27.40
This model has 36 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Design principle: 2-pole, changeover contact, plug-in
    • twin bifurcated changeover contact available (T22)
  • Socket type: S2
  • Maximum contact load:
    • A2x:
      • AC-1: 10 A / 250 V
      • DC-1: 0.5 A / 110 V
    • T22:
      • AC-1: 6A/250V
      • DC-1: 6A/30V
  • Material:
    • A20: AgNi
    • A28: AgNi + 5 µ Au
    • T22: AgNi + 10 µ Au
  • Pin count: 8
  • Operating temperature: -40 to 60ºC / -40 to 80°C (no ice)
  • Coil voltage: 12 V up to 240 V
    • 24 AC/DC universal variant available
  • CE, RoHS compliant
  • Trailing RF-**** numbers indicate a customized solution, contact a TMMI engineer for details and to confirm if this variant is available to you

The TURCK ComatReleco C2 Series Industrial Relay is a line of 2-pole, 8-pin socket-type pluggable relays, with changeover contacts. Standard contact material for these relays is Silver Nickel (AgNi), with Gold (Au) plating available for applications with harsh atmospheres. Relays with gold contacts are approved for relatively high currents, with rating available up to 10 A with 250 V (DC-1).

The meticulous design of the C2 Series optimizes this line for general purpose use across industrial applications and installation engineering. Colour coding as a function of the coil voltage further streamlines manual operation. Additional options including freewheeling diodes, LED indicators, bridge rectifiers for AC/DC drives, resistor and capacitor, as well as polarity can be configured. All ComatReleco relays feature the CE mark to indicate that CE standards may also be applied to the relays. The units comply with the latest environmental regulations including RoHS.
