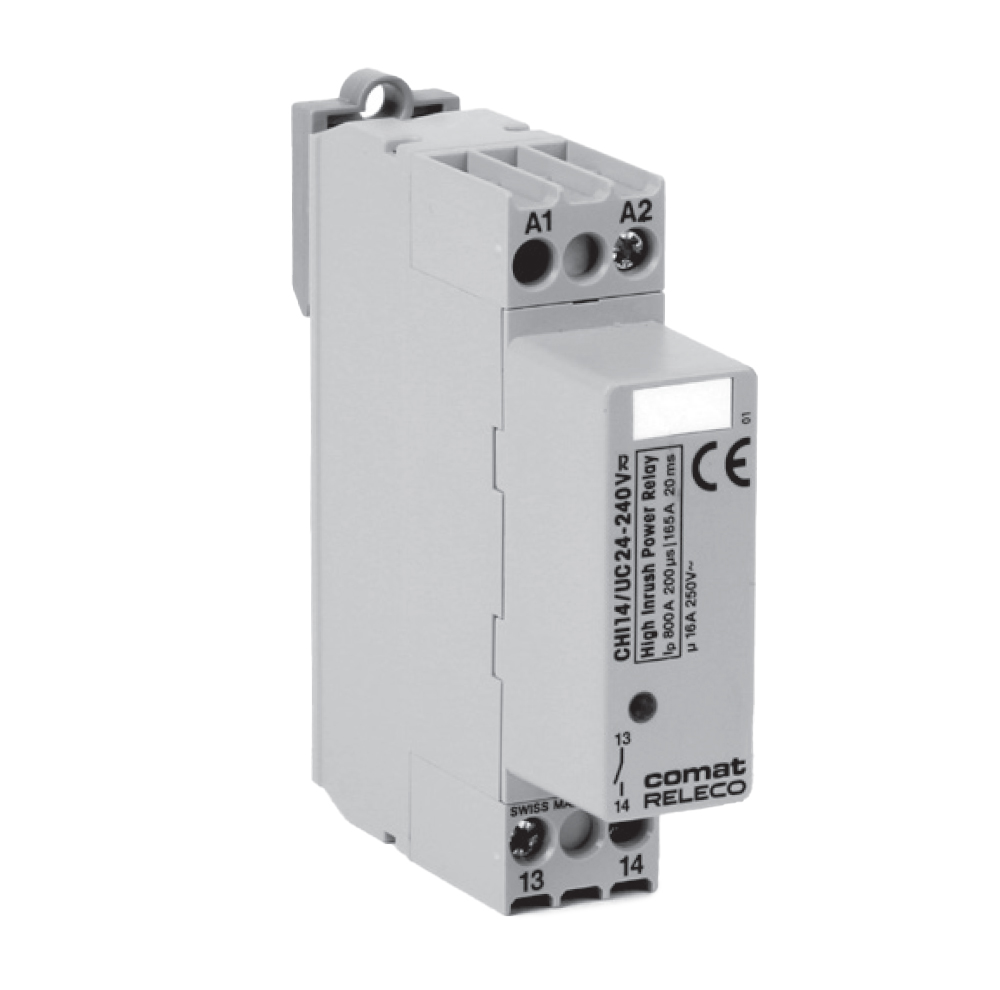

TURCK C8708 / CHI14/UC24-240V Installation Relay

1-pole high inrush power relay rated up to 800 A. IP20 protection.

$93.50
Part Numbers
  • CHI14/UC24-240V
  • C8708
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Design principle: 1-pole, high inrush relay
  • Inrush current up to 800A
  • Maximum contact load: 16 A / 250 V (AC)
  • Contact material: W / AgSnO2
  • Housing material: Lexan
  • Nominal operating voltage: 24 to 240V (AC/DC)
  • Operating temperature: -40 to 85°C / -40 to 60°C (no ice)
  • Protection rating: IP20

The TURCK C8708 / CHI14/UC24-240V Installation Relay is a 1-pole high inrush relay with current rating up to 16 A / 250 V (AC-1). Inrush currents up to 800 A are supported, with a wide operating temperature rang and IP20 protection rating. All ComatReleco relays feature the CE mark to indicate that CE standards may also be applied to the relays. The units comply with the latest environmental regulations including RohS.
