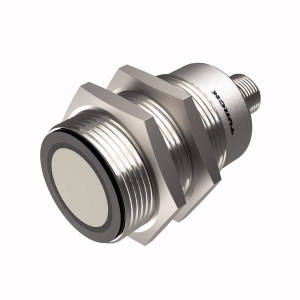

TURCK 100039013 / RU300D-M30M-LIU8X2-H1141 Ultrasonic Sensors
Ultrasonic Sensor, Diffuse Mode Sensor.
Overview
Features
- Operating Distance: 300 cm
- Design Principle: Dual-mode (switchable btw proximity and retroreflective)
- Housing Design: 30 mm barrel, front sensing transducer
- Output Function: 1 × PNP/NPN output, 1 x analog 4 to 20 mA/0 to 10 V output
- Teach Button: Without
- Connectorized Sensor: Eurofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 4
- Wiring Configuration: Standard wiring
- IO-Link: IO Link V1.1
Description
Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 18…30 VDC, Max. range 3000 mm, Smooth sonic transducer face, M30 cylindrical design, potted, Connection via M12 × 1 male connector, Measuring range adjustable via teach-in, Temperature compensation, Blind zone: 30 cm, Range: 300 cm, Resolution: 1 mm, Adjustable switching hysteresis, Aperture angle of sonic cone: ± 5 °, 1 × switching output, PNP/NPN, IO-Link, teach-in, synchronization, 1 × analog output, 4…20 mA/0…10 V/switching output, PNP/NPN, NO/NC programmable, Transmission of process value and parametrization via IO-link, Adjustable operation as a retroreflective sensor
