TURCK 100033663 / PT1VR-1121-U6-DT043P Pressure Sensors

Pressure Transmitter, Ratiometric Output (3-Wire).

$194.70
Part Numbers
  • PT1VR-1121-U6-DT043P
  • 100033663
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Pressure Type: Vacuum
  • Pressure Range: −1 to 0 bar (-14.5 to 0 psig)

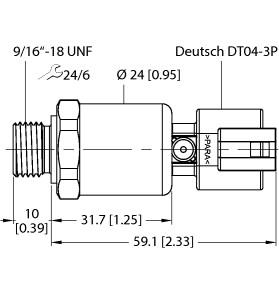

  • Process Connection: Male 9/16 - 18 UNF (SAE-ORB)
  • Electrical Output: Ratiometric (3-wire) 0.5 to 4.5 VDC
  • Electrical Connection: DT04 Duetsch Connector
View other configurations.
Pressure Transmitter, Ratiometric Output (3-Wire), , For mobile hydraulic applications, Ceramic measuring cell, Compact and robust design, Excellent EMC properties, Excellent accuracy and long-term stability, Complies with ISO 16750-2, Pressure range -1…0 bar rel., 5 VDC ± 10 %, Ratiometric output 10…90 %, Process connection 9/16-18 UNF (SAE) male thread, Plug-in device, Deutsch DT04-3P, "
