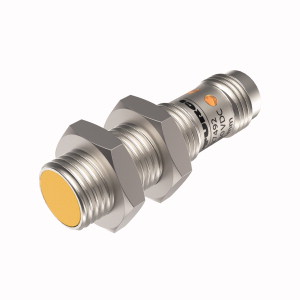

TURCK 100027492 / BCT4-M12-IOL-H1141 Capacitive Sensors
Capacitive Sensor.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Capacitive teach (IO-Link capability)
- Operating Distance: 4 mm
- Housing Style: Barrel, partial threading, chrome plated brass
- Housing Diameter or Height: 12 mm
- Secondary Housing Modifier: Without/Not applicable
- Output Function: Connection programmable (N.O. or N.C)
- Output: PNP/NPN
- Voltage Range: 18 to 30 VDC
- Number of LEDS: 4
Description
Capacitive Sensor, Rated switching distance 4 mm, Flush/Non-flush, Detection of metallic and non-metallic objects, Detection of liquids, powders and solid materials, , All functions can be parameterized via IO-Link, Three different types of object teaching (one value, two value, dynamic) possible, Available counting function whose content can be called up via IO-Link, Switching status indicated by four LEDs arranged all around the device, M12 × 1 male connector, 4-pin, Robust, compact housing made of nickel-plated brass, M12 threaded design, flush, switching distance = 4 mm
