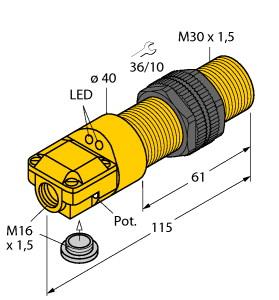

TURCK 100026664 / BCE10-P30SR-VP6X2 Capacitive Sensors

Capacitive Sensor, With Potentiometer.

$204.70
Part Numbers
  • BCE10-P30SR-VP6X2
  • 100026664
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Capacitive (IP65)
  • Operating Distance: 10 mm
  • Housing Style: Barrel, plastic, full threading
  • Housing Diameter or Height: 30 mm
  • Secondary Housing Modifier: Straight terminal chamber
  • Output Function: Complementary outputs: one N.O., one N.C.
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Capacitive Sensor, With Potentiometer, Rated switching distance 15 mm, Flush, M30 × 1.5 threaded barrel, Plastic, ABS, Fine adjustment via potentiometer, DC 4-wire, 10…30 VDC, Complementary contact, PNP output, Terminal chamber
