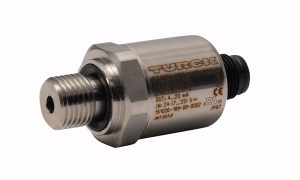

TURCK 100021898 / PT1V-1004-IOL-H1141 Pressure Sensors

Pressure Transmitter, With 2 Switching Outputs and IO-Link.

$251.80
Part Numbers
  • PT1V-1004-IOL-H1141
  • 100021898
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Pressure Type: Compound
  • Pressure Range: −1 to 1 bar (−14.5 to 14.5 psig)
  • Sensor Type: Ceramic Measuring Cell
  • Process Connection: Male G1/4
  • Electrical Output: 2x NPN/PNP outputs, IO-link communication
  • Electrical Connection: Eurofast connector, M12, straight, 4-pin
  • Special Options: Without/Not applicable
Pressure Transmitter, With 2 Switching Outputs and IO-Link, Operating voltage 18…33 VDC, Ceramic measuring cell, Compact and robust design, Excellent EMC properties, , Pressure range -1…1 bar rel., 18…33 V DC, NO/NC contact, 2 × PNP/NPN outputs, IO-Link, Process connection G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring, Connector device, M12 × 1
