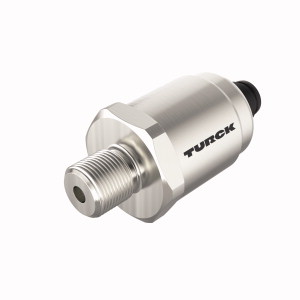

TURCK 100021367 / PT3PSIG-1503-U1-H1141/D840 Pressure Sensors

Pressure Transmitter, With Voltage Output (3-Wire).

$429.10
Part Numbers
  • PT3PSIG-1503-U1-H1141/D840
  • 100021367
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Pressure Type: Relative
  • Pressure Range: 0 to 3 psi
  • Process Connection: Male NPT1/4-18
  • Electrical Output: 0 to 10 V (3-wire)
  • Electrical Connection: Eurofast connector, M12, straight, 4-pin
  • Seal Material: FPM
View other configurations.
Pressure Transmitter, With Voltage Output (3-Wire), , Ceramic measuring cell, Extremely high measuring accuracy, Compact and robust design, Excellent temperature behavior, , Pressure range 0…3 psi rel., , 12…33 VDC, Analog output 0…10 V, Process connection 1/4-18 NPT male thread, Plug-in device, M12 × 1, "
