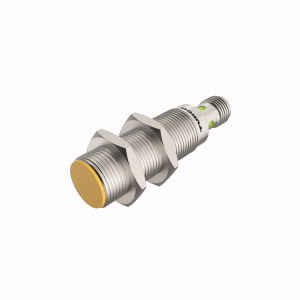

TURCK 100016607 / BI8-M18-2APS8X2-H1141 Inductive Sensors
Inductive Safety Sensor.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Inductive
- Operating Distance: 8 mm
- Sensing Characteristics: Standard
- Housing Material Modifier: Without
- Housing Style: Barrel, partial threading, chrome plated brass
- Primary Barrel Modifier: Standard
- Housing Diameter or Height: 182 mm
- Secondary Barrel Modifier: Without/Not applicable
- Output Function: Normally open (N.O.)
- Output: PNP transistor (current sourcing); DC 4-wire; OSSD
- Voltage Range: 20 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 2
Description
Inductive Safety Sensor, Rated switching distance 8 mm, Flush, M18 × 1 threaded barrel, Nickel-plated brass, , SIL 2 (IEC 61508), PL d (ISO 13849-1), 2 x OSSD output, NO contact, PNP, DC 4-wire, 24 VDC
