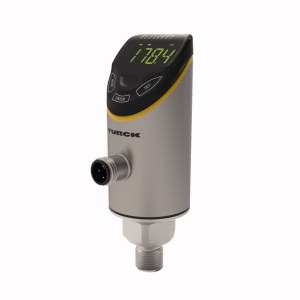

TURCK 100008094 / PS510-16V-03-2UPN8-H1141/X Pressure Sensors

Pressure Sensor, Relative Pressure: -1…16  Bar.

$469.50
Part Numbers
  • PS510-16V-03-2UPN8-H1141/X
  • 100008094
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Sensor Type: Programmable sensor with Stainless Steel Measuring Cell
  • Pressure Range: −1 to 16bar
  • Process Connection: Male NPT1/4
  • Electrical Output: Dual switch point
  • Electrical Connection: M12
  • Special Options: Orifice snubber
View other configurations.
Pressure Sensor, Relative Pressure: -1…16  Bar, Operating voltage 18…33 VDC, 4-digit, 2-color (red/green), 12-segment display, rotatable by 180°, Housing is rotatable after mounting the process connection, Metal measuring cell, Pressure peak orifice, Pressure range -1…16 bar relative, 18…33 VDC, NO/NC contact, PNP/NPN output, IO-Link SSP4.1.1, Process connection 1/4″ NPT male thread, Connector device, M12 × 1
