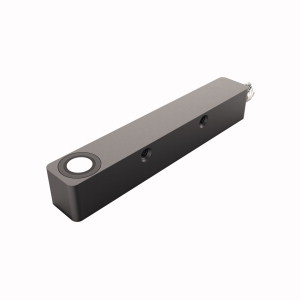

TURCK 100005612 / RU40L-Q12S-UP8X-V1141 Ultrasonic Sensors
Ultrasonic Sensor, Retroreflective Sensor.
Overview
Features
- Operating Distance: 40 cm
- Design Principle: Retroreflective
- Housing Design: 82 x 12 x 12 mm rectangular housing, M8 × 1 male connection
- Output Function: 1x PNP output
- Connectorized Sensor: Picofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 4
- Wiring Configuration: Standard wiring
- IO-Link: IO-Link V1.1
Description
Ultrasonic Sensor, Retroreflective Sensor, Max. range 400 mm, Smooth sonic transducer face, Rectangular housing Q12S, potted, Lateral light emission, Connection via M8 × 1 male connector, Teach range adjustable via connection cable or via IO-Link, Blind zone: 4 cm, Range: 40 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±9 °, 1 x switching output, PNP, Teachable settings, NO/NC programmable
