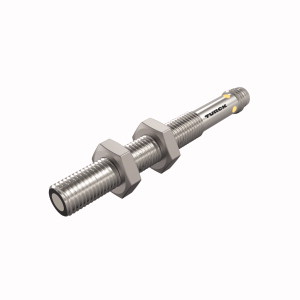

TURCK 100003159 / RU10L-M08-UP8X-V1141 Ultrasonic Sensors
Ultrasonic Sensor, Retroreflective Sensor.
Overview
Features
- Operating Distance: 10 cm
- Design Principle: Retroreflective
- Housing Design: 8 mm metal barrel, Picofast M8 x 1 connection
- Output Function: 1 X PNP output
- Connectorized Sensor: Picofast connector, metal, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 4
- Wiring Configuration: Standard wiring
- IO-Link: IO Link V1.1
Description
Ultrasonic Sensor, Retroreflective Sensor, Max. range 100 mm, Smooth sonic transducer face, Cylindrical housing M08, potted, Connection via M8 × 1 male connector, Teach range adjustable via connection cable, Blind zone: 2 cm, Range: 10 cm, Resolution: 0.2 mm, Aperture angle of sonic cone: ±9 °, 1x switching output, PNP, Teachable settings, NO/NC programmable, IO-Link
