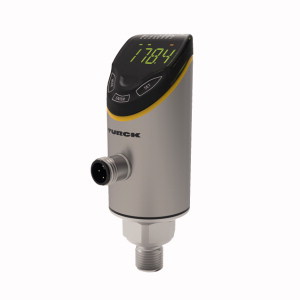

TURCK 100002992 / PS510-400-05-LI2UPN8-H1141 Pressure Sensors
Pressure Sensor, Relative Pressure: 0…400 Bar.
Overview
Features
- Sensor Type: Programmable sensor with Stainless Steel Measuring Cell
- Pressure Range: 0 to 400bar
- Process Connection: Male 7/16-20 UNF (SAE-ORB)
- Electrical Output: Analog voltage/current + switch point or dual switch point
- Electrical Connection: M12
- Special Options: None
Description
Pressure Sensor, Relative Pressure: 0…400 Bar, , 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Metal measuring cell, 18…33 VDC, NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link, Process connection 7/16 UNF (SAE) male thread, Plug-in device, M12 × 1, "
