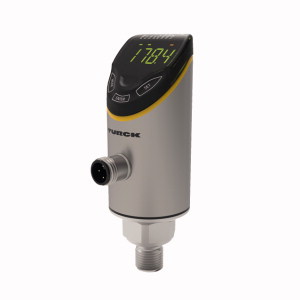

TURCK 100001729 / PS510-250-05-2UPN8-H1141 Pressure Sensors

Pressure Sensor, Relative Pressure: 0…250  Bar.

$485.80
Part Numbers
  • PS510-250-05-2UPN8-H1141
  • 100001729
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Sensor Type: Programmable sensor with Stainless Steel Measuring Cell
  • Pressure Range: 0 to 250bar
  • Process Connection: Male 7/16-20 UNF (SAE-ORB)
  • Electrical Output: Dual switch point
  • Electrical Connection: M12
  • Special Options: None
View other configurations.
Pressure Sensor, Relative Pressure: 0…250  Bar, , 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Metal measuring cell, 18…33 VDC, NO/NC contact, PNP/NPN output, IO-Link, Process connection 7/16 UNF (SAE) male thread, Plug-in device, M12 × 1, "
