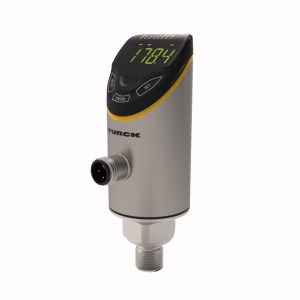

TURCK 100001675 / PS510-10V-03-2UPN8-H1141 Pressure Sensors

Pressure Sensor, Relative Pressure: -1…10  Bar.

$485.80
Part Numbers
  • PS510-10V-03-2UPN8-H1141
  • 100001675
Manufactured
Availability
  • Usually ships in 1-2 weeks
Product Specs

Features

  • Sensor Type: Programmable sensor with Stainless Steel Measuring Cell
  • Pressure Range: −1 to 10bar
  • Process Connection: Male NPT1/4
  • Electrical Output: Dual switch point
  • Electrical Connection: M12
  • Special Options: None
View other configurations.
Pressure Sensor, Relative Pressure: -1…10  Bar, , 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Metal measuring cell, 18…33 VDC, NO/NC contact, PNP/NPN output, IO-Link, Process connection 1/4" NPT male thread, Connector device, M12 × 1
