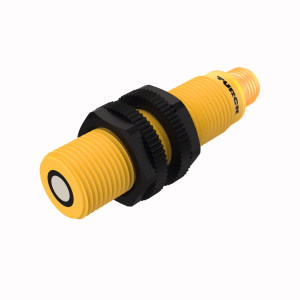

TURCK 100000748 / RU50U-S18-LI8X-H1141 Ultrasonic Sensors
Ultrasonic Sensor, Diffuse Mode Sensor.
Overview
Features
- Operating Distance: 50 cm
- Design Principle: Proximity/diffuse
- Housing Design: Cylindrical housing, potted
- Output Function: Analog 4 to 20 mA output
- Connectorized Sensor: Eurofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 4
- Wiring Configuration: Standard wiring
Description
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 500 mm, Smooth sonic transducer face, Cylindrical housing S18, potted, Connection via M12 × 1 male connector, Temperature compensation, Blind zone: 5 cm, Range: 50 cm, Aperture angle of sonic cone: ±20 °, Analog output, 4…20 mA, Adjustable measuring range
