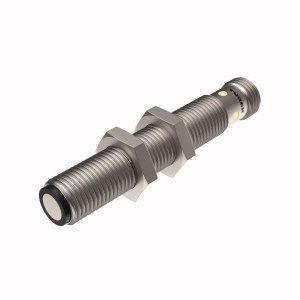

TURCK 100000283 / RU40U-M12-LU8X2-H1141 Ultrasonic Sensors
Ultrasonic Sensor, Diffuse Mode Sensor.
Overview
Features
- Operating Distance: 40 cm
- Design Principle: Proximity/diffuse
- Housing Design: 12 mm metal barrel, Eurofast M12 x 1 connection
- Output Function: Analog 0 to 10 V output
- Connectorized Sensor: Eurofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 4
- Wiring Configuration: Standard wiring
- IO-Link: Not available with analog variants
Description
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 400 mm, Smooth sonic transducer face, Cylindrical housing M12, potted, Connection via M12 × 1 male connector, Teach range adjustable via connection cable, Blind zone: 4 cm, Range: 40 cm, Resolution: 0.5 mm, Aperture angle of sonic cone: ±15 °, Analog output 0…10 V
