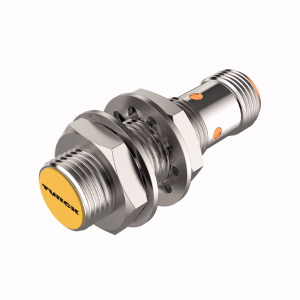

TURCK 46702500 / BI4-G12K-AP6X/S1589 Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

$160.80
Part Numbers
  • BI4-G12K-AP6X/S1589
  • 46702500
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 4 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Barrel, full threading, generally chrome plated brass
  • Primary Barrel Modifier: Standard
  • Housing Diameter or Height: 12 mm
  • Secondary Barrel Modifier: Short barrel length
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, With Increased Switching Distance, Rated switching distance 4 mm, Cable length (L) 2 m, Flush, Threaded barrel, M12 x 1, Chrome-plated brass, Large sensing range, DC 3-wire, 10…30 VDC, NO contact, PNP output, Cable connection
