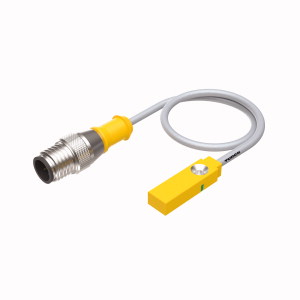

TURCK 46136010 / NI3.5-Q5.5-AP6X-0.2-RS4T/S1589 Inductive Sensors

Inductive Sensor, With Weldguard® coating.

$139.60
Part Numbers
  • NI3.5-Q5.5-AP6X-0.2-RS4T/S1589
  • 46136010
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 3.5 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 5.5 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, With Weldguard® coating, Rated switching distance 3.5 mm, Cable length (L) 0.2 m, Non-flush, Rectangular, height 5.5 mm, Active face on top, Plastic, PP, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
