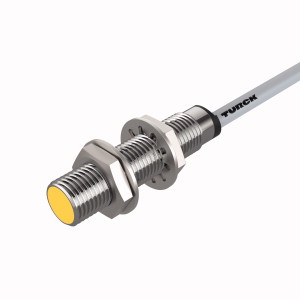

TURCK 46071301 / BI4-M12-RN6X Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

Available in other configurations.

TURCK 46071301 / BI4-M12-RN6X Inductive Sensors — TURCK-BI4-M12-RN6X

$134.40

Part Numbers

BI4-M12-RN6X
46071301

Manufactured

By TURCK

Availability

Usually ships in 2-3 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 4 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 12 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: normally closed (N.C.)
Output: NPN transistor (current sinking)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, With Increased Switching Distance, Rated switching distance 4 mm, Cable length (L) 2 m, Flush, M12 × 1 threaded barrel, Chrome-plated brass, Large sensing range, DC 3-wire, 10…30 VDC, NC contact, NPN output, Cable connection
