TURCK 42054802 / NI20-Q14-ADZ32X2-0.2-SB3T Inductive Sensors

Inductive Sensor.

$199.70
Part Numbers
  • NI20-Q14-ADZ32X2-0.2-SB3T
  • 42054802
Manufactured
Availability
  • Usually ships in 8-12 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 20 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 14 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: 2-wire AC/DC, (power MOSFET output)
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
  • Number of LEDS: 2
View other configurations.

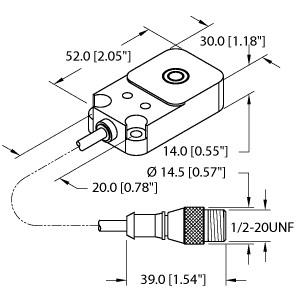

Inductive Sensor, Rated switching distance 20 mm, Cable length (L) 0.2 m, Non-flush, Rectangular, height 14 mm, Active face on top, Plastic, PBT‐GF30‐V0, AC 2‐wire, 20–250 VAC, DC 2-wire, 10–300 VDC, NO contact, 1/2 male connector, "
