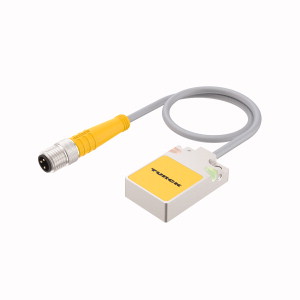

TURCK 16620942 / BI8U-Q08-AP6X2-0.2-PSG3M Inductive Sensors

Inductive Sensor, With Extended Switching Distance.

Available in other configurations.

TURCK 16620942 / BI8U-Q08-AP6X2-0.2-PSG3M Inductive Sensors — TURCK-BI8U-Q08-AP6X2-0.2-PSG3M

$163.70

Part Numbers

BI8U-Q08-AP6X2-0.2-PSG3M
16620942

Manufactured

By TURCK

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 8 mm
Sensing Characteristics: Uprox sensor
Housing Style: Rectangular style, metal or plastic
Housing Diameter or Height: 08 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, With Extended Switching Distance, Rated switching distance 8 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, Mountable on metal, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M8 x 1
