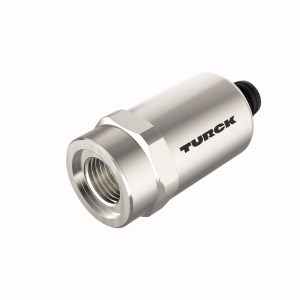

TURCK 6837669 / PT100R-2001-U1-H1141 Pressure Sensors

Pressure Transmitter, With Voltage Output (3-Wire).

$194.70
Part Numbers
  • PT100R-2001-U1-H1141
  • 6837669
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Pressure Type: Relative
  • Pressure Range: 0 to 100 bar (0 to 1450 psig)
  • Sensor Type: Stainless Steel Measuring Cell
  • Process Connection: Female G1/4
  • Electrical Output: 0 to 10 VDC (3-wire)
  • Electrical Connection: Eurofast connector, M12, straight, 4-pin
  • Special Options: None
View other configurations.
Pressure Transmitter, With Voltage Output (3-Wire), , Fully welded metal measuring cell, Pressure range 0…100 bar rel., 12…33 VDC, Analog output 0…10 V, Process connection G1/4 female thread, front sealing, Connector device, M12 × 1, "
