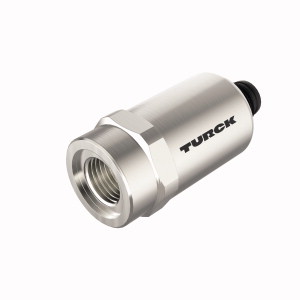

TURCK 6836559 / PT160R-2001-I2-H1141 Pressure Sensors

Pressure Transmitter, With Current Output (2-Wire).

$194.70
Part Numbers
  • PT160R-2001-I2-H1141
  • 6836559
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Pressure Type: Relative
  • Pressure Range: 0 to 160 bar (0 to 2320 psig)
  • Sensor Type: Stainless Steel Measuring Cell
  • Process Connection: Female G1/4
  • Electrical Output: 4 to 20 mA (2-wire)
  • Electrical Connection: Eurofast connector, M12, straight, 4-pin
  • Special Options: None
View other configurations.
Pressure Transmitter, With Current Output (2-Wire), , Fully welded metal measuring cell, Pressure range 0…160 bar rel., 7…33 VDC, Analog output 4…20 mA, Process connection G1/4 female thread, front sealing, Connector device, M12 × 1, "
