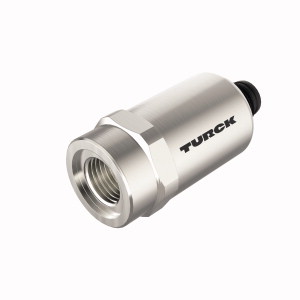

TURCK 6836102 / PT9V-2001-I2-H1141 Pressure Sensors

Pressure Transmitter, With Current Output (2-Wire).

$194.70
Part Numbers
  • PT9V-2001-I2-H1141
  • 6836102
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Pressure Type: Compound
  • Pressure Range: −1 to 9 bar (−14.5 to 130.5 psig)
  • Sensor Type: Stainless Steel Measuring Cell
  • Process Connection: Female G1/4
  • Electrical Output: 4 to 20 mA (2-wire)
  • Electrical Connection: Eurofast connector, M12, straight, 4-pin
  • Special Options: None
View other configurations.
Pressure Transmitter, With Current Output (2-Wire), , Fully welded metal measuring cell, Pressure range -1…9 bar rel., 7…33 VDC, Analog output 4…20 mA, Process connection G1/4 female thread, front sealing, Connector device, M12 × 1, "
