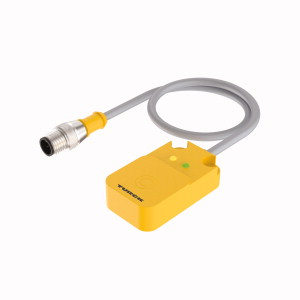

TURCK 4690298 / NI20-Q14-AD4X-0.2-RS4.2T Inductive Sensors

Inductive Sensor.

$128.90
Part Numbers
  • NI20-Q14-AD4X-0.2-RS4.2T
  • 4690298
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 20 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 14 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: 2-wire DC (transistor output)
  • Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, Rated switching distance 20 mm, Cable length (L) 0.2 m, Non-flush, Rectangular, height 14 mm, Active face on top, Plastic, PBT‐GF30‐V0, DC 2-wire, 10…65 VDC, NO contact, Cable with male end
