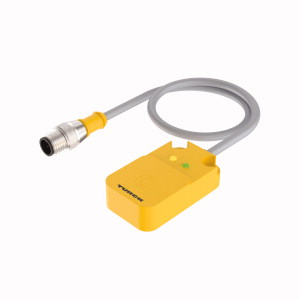

TURCK 4690290 / NI20-Q14-AP6X2-0.2-RS4T Inductive Sensors

Inductive Sensor.

Available in other configurations.

$128.90

Part Numbers

NI20-Q14-AP6X2-0.2-RS4T
4690290

Manufactured

By TURCK

Availability

Usually ships in 8-12 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 20 mm
Sensing Characteristics: Standard
Housing Style: Rectangular style, metal or plastic
Housing Diameter or Height: 14 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

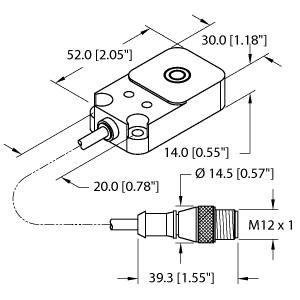

Inductive Sensor, Rated switching distance 20 mm, Cable length (L) 0.2 m, Non-flush, Rectangular, height 14 mm, Active face on top, Plastic, PBT‐GF30‐V0, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
