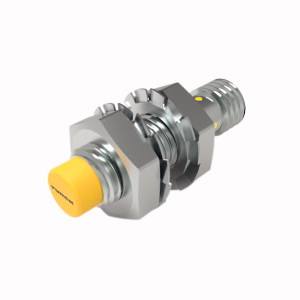

TURCK 4669750 / NI3-EG08K-AN6X-V1131 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$145.20

Part Numbers

NI3-EG08K-AN6X-V1131
4669750

Manufactured

By TURCK

Availability

Usually ships in 5-8 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 3 mm
Sensing Characteristics: Standard
Housing Material Modifier: Stainless steel
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 08 mm
Secondary Barrel Modifier: Short barrel length
Output Function: Normally open (N.O.)
Output: NPN transistor (current sinking)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 3 mm, Non-flush, M8 × 1 threaded barrel, Stainless steel, 1.4305 (AISI 303), DC 3-wire, 10…30 VDC, NO contact, NPN output, M8 x 1 male connector
