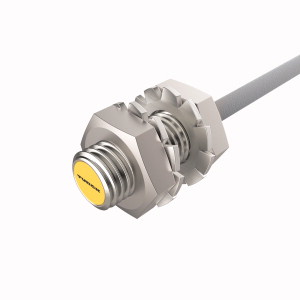

TURCK 4669453 / BI2-EG08K-AP6X/S957 Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

Available in other configurations.

TURCK 4669453 / BI2-EG08K-AP6X/S957 Inductive Sensors — TURCK-BI2-EG08K-AP6X/S957

$166.10

Part Numbers

BI2-EG08K-AP6X/S957
4669453

Manufactured

By TURCK

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 2 mm
Sensing Characteristics: Standard
Housing Material Modifier: Stainless steel
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 08 mm
Secondary Barrel Modifier: Short barrel length
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, With Increased Switching Distance, Rated switching distance 2 mm, Cable length (L) 2 m, Flush, M8 × 1 threaded tube, Stainless steel, 1.4305 (AISI 303), Large sensing range, DC 3-wire, 10…30 VDC, NO contact, PNP output, Cable connection
