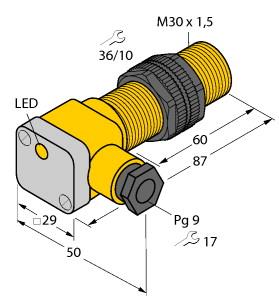

TURCK 4660100 / NI15-P30SK-AP6X2 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$181.50

Part Numbers

NI15-P30SK-AP6X2
4660100

Manufactured

By TURCK

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 1.5 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, plastic, full threading
Primary Barrel Modifier: Standard
Housing Diameter or Height: 30 mm
Secondary Barrel Modifier: Right-angle terminal chamber
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 15 mm, Non-flush, Threaded barrel, M30 x 1.5, Plastic, PA12‐GF30, DC 3-wire, 10…30 VDC, NO contact, PNP output, Terminal chamber
