TURCK 4659325 / NI15-Q30-AP6X Inductive Sensors

Inductive Sensor.

$116.50
Part Numbers
  • NI15-Q30-AP6X
  • 4659325
Manufactured
Availability
  • Usually ships in 3-4 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 1.5 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 30 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.

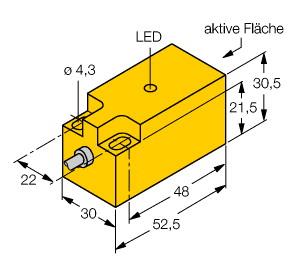

Inductive Sensor, Rated switching distance 15 mm, Cable length (L) 2 m, Non-flush, Rectangular, height 31 mm, Active face in front, Plastic, PBT‐GF30‐V0, DC 3-wire, 10…30 VDC, NO contact, PNP output, Cable connection
