TURCK 4614582 / BI5-M18E-AP6X-1-RS4T Inductive Sensors

Inductive Sensor.

Available in other configurations.

$159.80

Part Numbers

BI5-M18E-AP6X-1-RS4T
4614582

Manufactured

By TURCK

Availability

Usually ships in 5-8 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 5 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 18 mm
Secondary Barrel Modifier: Extended barrel length
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

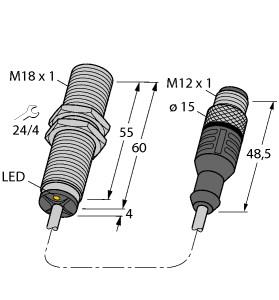

Inductive Sensor, Rated switching distance 5 mm, Cable length (L) 1 m, Flush, Threaded barrel, M18 x 1, Chrome-plated brass, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
