TURCK 4611498 / NI14-M18-AP6X-0.2-RS4T Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

Available in other configurations.

TURCK 4611498 / NI14-M18-AP6X-0.2-RS4T Inductive Sensors — TURCK-NI14-M18-AP6X-0.2-RS4T

$169.30

Part Numbers

NI14-M18-AP6X-0.2-RS4T
4611498

Manufactured

By TURCK

Availability

Usually ships in 5-8 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 14 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 18 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

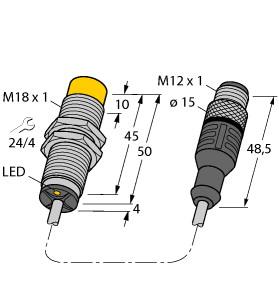

Inductive Sensor, With Increased Switching Distance, Rated switching distance 14 mm, Cable length (L) 0.2 m, Non-flush, Threaded barrel, M18 x 1, Chrome-plated brass, Large sensing range, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
