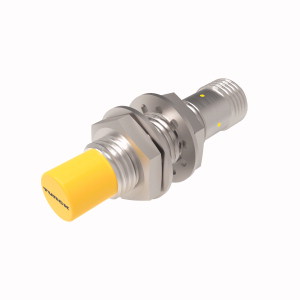

TURCK 4611389 / NI8-M12E-VP6X-H1141 Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

$142.60
Part Numbers
  • NI8-M12E-VP6X-H1141
  • 4611389
Manufactured
Availability
  • Usually ships in 0-7 business days
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 8 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Barrel, partial threading, chrome plated brass
  • Primary Barrel Modifier: Standard
  • Housing Diameter or Height: 12 mm
  • Secondary Barrel Modifier: Extended barrel length
  • Output Function: Complementary outputs: one N.O., one N.C.
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, With Increased Switching Distance, Rated switching distance 8 mm, Non-flush, M12 × 1 threaded barrel, Long version, Chrome-plated brass, Large sensing range, DC 4-wire, 10…30 VDC, Changeover contact, PNP output, M12 x 1 male connector
