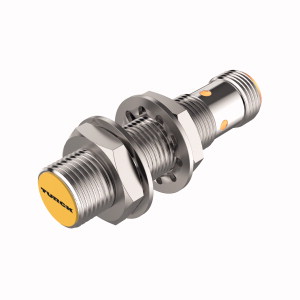

TURCK 4607085 / BI4-M12E-RP6X-H1143 Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

$136.70
Part Numbers
  • BI4-M12E-RP6X-H1143
  • 4607085
Manufactured
Availability
  • Usually ships in 3-4 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 4 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Barrel, partial threading, chrome plated brass
  • Primary Barrel Modifier: Standard
  • Housing Diameter or Height: 12 mm
  • Secondary Barrel Modifier: Extended barrel length
  • Output Function: normally closed (N.C.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, With Increased Switching Distance, Flush, M12 × 1 threaded barrel, Long version, Chrome-plated brass, Large sensing range, DC 3-wire, 10…30 VDC, NC contact, PNP output, M12 x 1 male connector
