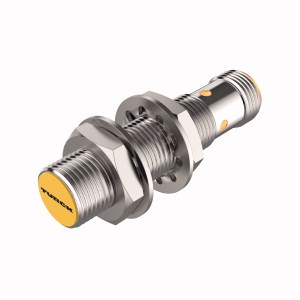

TURCK 4606507 / BI2-M12E-VP6X-H1141 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$136.60

Part Numbers

BI2-M12E-VP6X-H1141
4606507

Manufactured

By TURCK

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 2 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 12 mm
Secondary Barrel Modifier: Extended barrel length
Output Function: Complementary outputs: one N.O., one N.C.
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 2 mm, Flush, M12 × 1 threaded barrel, Long version, Chrome-plated brass, DC 4-wire, 10…30 VDC, Changeover contact, PNP output, M12 x 1 male connector
