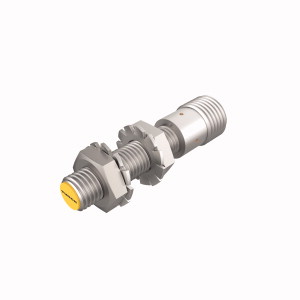

TURCK 4602523 / BI2-EG08-RN6X-H1341 Inductive Sensors
Inductive Sensor, With Increased Switching Distance.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Inductive
- Operating Distance: 2 mm
- Sensing Characteristics: Standard
- Housing Material Modifier: Stainless steel
- Housing Style: Barrel, full threading, generally chrome plated brass
- Primary Barrel Modifier: Standard
- Housing Diameter or Height: 08 mm
- Secondary Barrel Modifier: Without/Not applicable
- Output Function: normally closed (N.C.)
- Output: NPN transistor (current sinking)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 1
Description
Inductive Sensor, With Increased Switching Distance, Rated switching distance 1.5 mm, Flush, M8 × 1 threaded barrel, Stainless steel, 1.4305 (AISI 303), Large sensing range, DC 3-wire, 10…30 VDC, NC contact, NPN output, M12 x 1 male connector
